Magnetic Card Reader All Track for Credit Cards

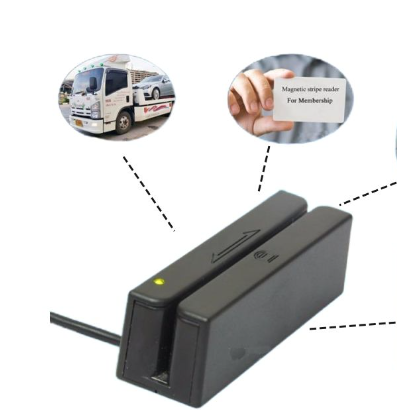

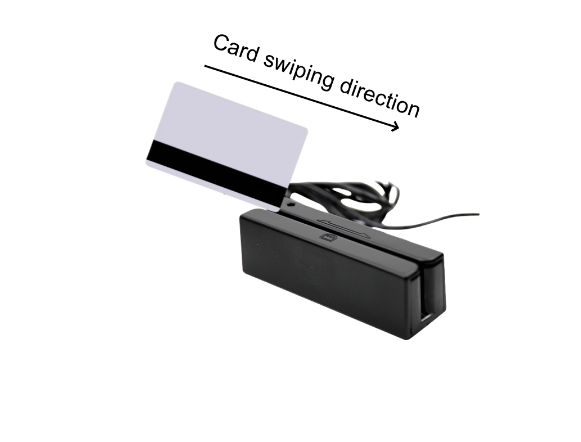

The magnetic stripe card reader is a versatile device that can read tracks 1 and 2 or tracks 1, 2, and 3. Simply slide the card in any direction to quickly and conveniently read the card information. This manual swipe card reader is perfect for Credit Cards, bank cards, driver’s licenses, and ID Cards, making it suitable for a variety of scenarios.
Опис
Преглед:

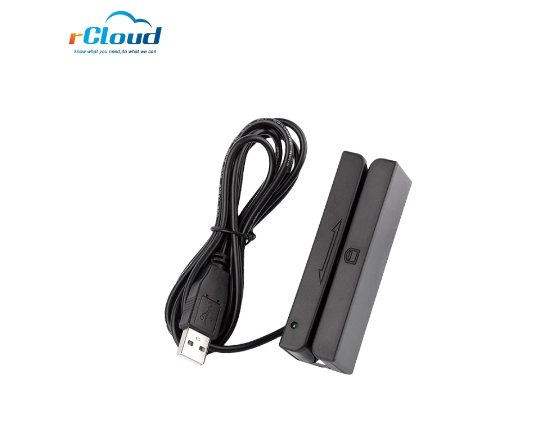

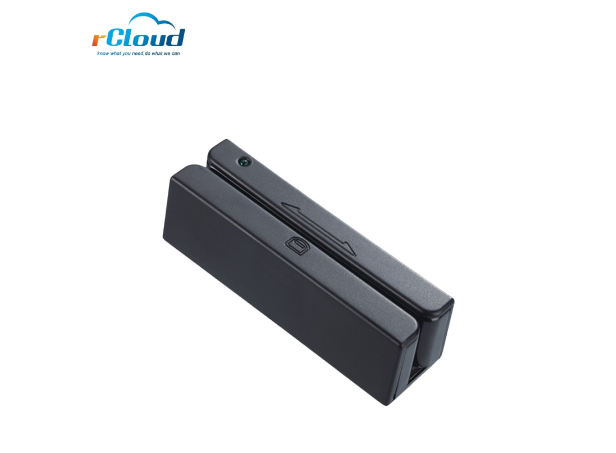

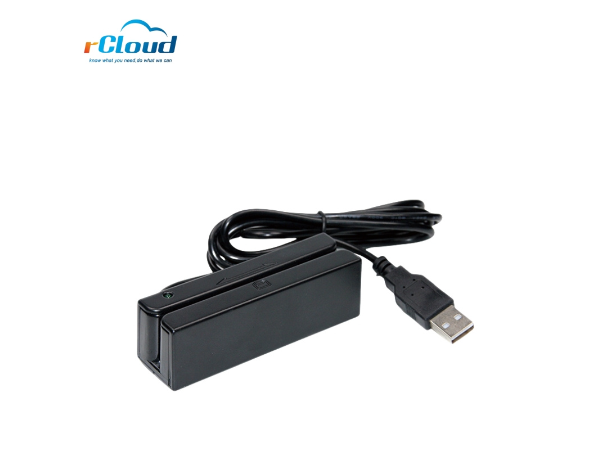

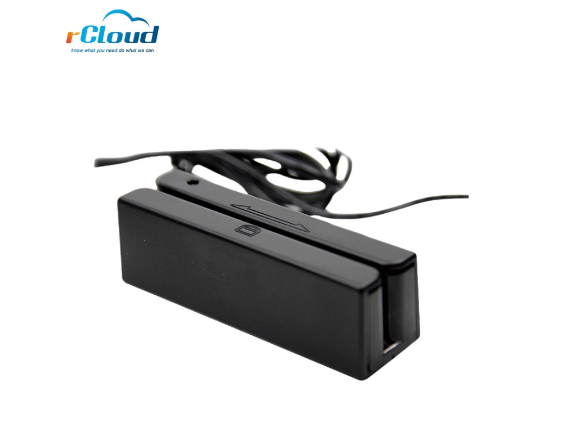

The RCR-1142 magnetic card reader is a manual swipe card reader. When using it, you only need to swipe the magnetic stripe card across the card reader to read the information in the magnetic stripe card. In appearance, the card reader has a black shell, and the overall size is small and easy to grasp; in terms of use, it is simple to operate and connect, and because magnetic stripe cards are widely used, magnetic stripe card readers are also used in daily life common items.
Спецификација:
| Card Standard | ISO 7811/7812 | ||
|---|---|---|---|
| Track Position | ISO1 (IATA) | ISO2 | ISO3 (MINTS) |
| Recording Density | 210 БПИ | 75 BPI | 210 БПИ |
| Recording Capacity | 79 Characters | 40 Characters | 107 Characters |
| Повер Суппли | +5В ДЦ ±5% | ||
| Power consumption | 65мА (макс.) | ||
| IDDQ | 25mA | ||
| Head Function | Magnetic track width:1.5mm | ||
| Дебљина картице | ПВЦ 0,76 ± 0,08 мм | ||
| Operation Speed | 10 ~ 150cm/sec | ||
| Error Rate | 0.5% Less Than (JSE Test card) | ||
| Working place | Индоор | ||
| Живот главе | 500,000 card passes (1 pass : one swipe) | ||
| Температура | Operation:-20°C ~ 70°C, Storage: -30°C ~ 70°C | ||
| Влажност | Operation:20 ~ 90% RH , storage:Less than 95% RH | ||

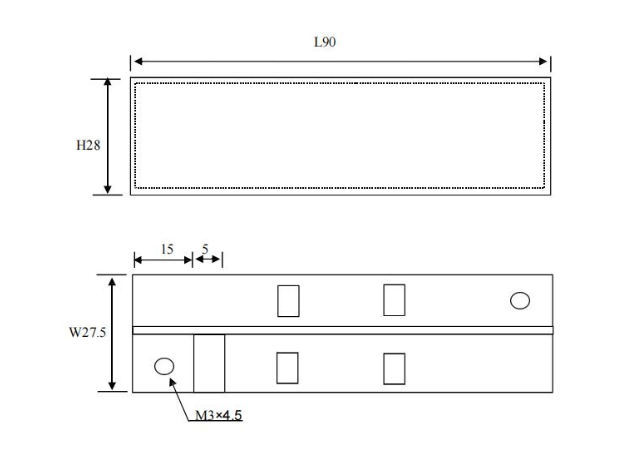

| Димензија | see dimension drawing |
Карактеристике:
* Картица са магнетном траком за читање/писање усклађена је са ИСО форматима
*Читање/писање возачких дозвола
*Read/Write High & Low Coercive (300~4000Oe)
* Висока/ниска коерцитивност кола за кодирање се могу изабрати на екрану
*Програмски софтвер за Виндовс 98/Ме/КСП/Виста/вин7/вин8
*Софтвер за програмирање за различите перформансе читања/писања
* Функција секвенцијалног писања, до 12 цифара (1 навише)
*Ручно превуците прстом да бисте читали и/или писали картицу са РС-232/УСБ излазом
*Писање и провера података на једној, двострукој или трострукој стази једним потезом
+9ВДЦ, 2.5А Мак спољни адаптер за напајање прикључен
* Димензије: 212 (Д) к 64 (Ш) к 63 (В) мм
*Box Dimensions : 290(L) x 180(W) x 100(H) mm
