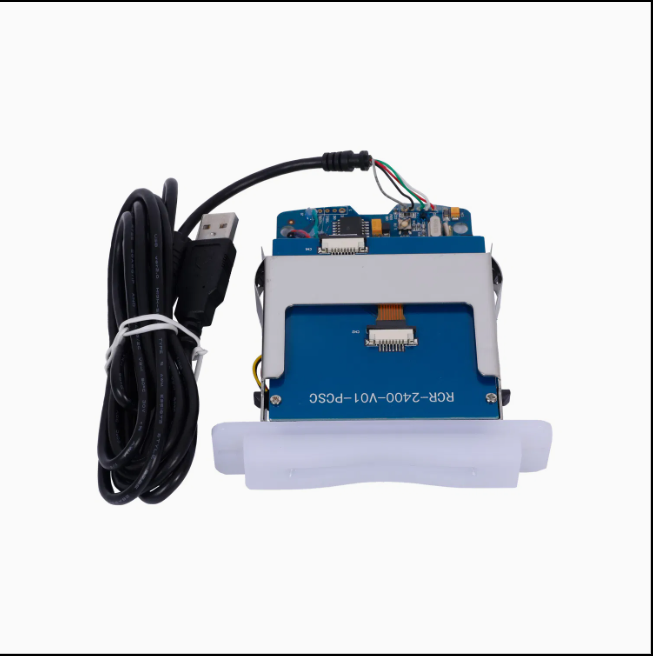

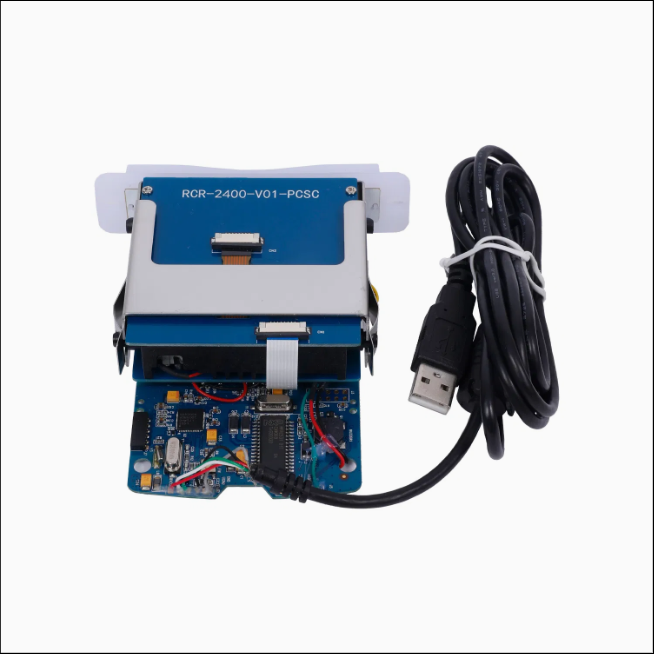

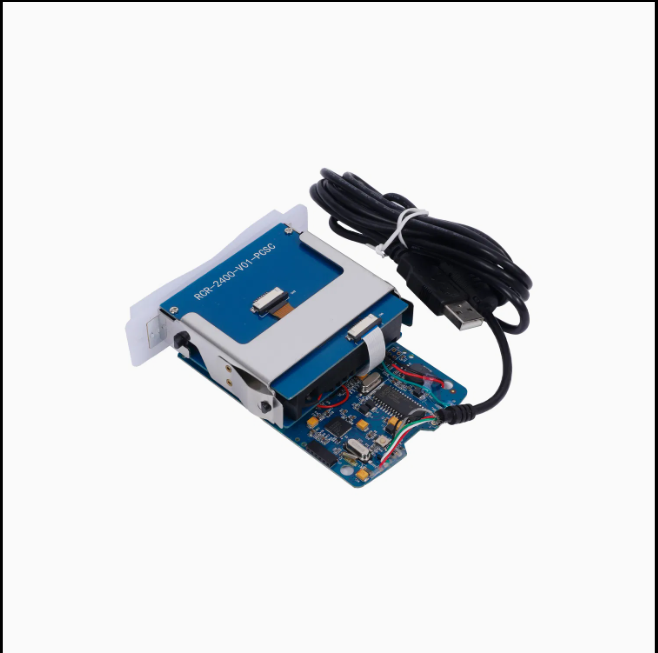

Устройство считывания смарт-карт Ccid RFID IC с двойным интерфейсом ПК/SC
🔐 Advanced Dual Interface Card Reader
А IC Smart Card Reader (2933) by rCloud is designed for high-performance applications requiring reliable access to smart cards. Supporting both contact and contactless communication, this versatile device is ideal for a wide range of industries, from gaming and security systems to payment and identification solutions.
🌍 Multi-Card Compatibility
This reader supports ISO7816 MCU cards, Mifare, and ISO 14443 Type A and B contactless cards, making it compatible with a broad spectrum of smart cards. It also features seamless connectivity with USB, providing easy and efficient integration with your PC or peripheral systems.
Описание
💡 Dual Interface for Flexibility
Equipped with three interfaces—PICC, IC, and SAM—the 2933 smart card reader is perfect for applications that require flexible connectivity options. Whether you’re communicating with a contactless tag, an MCU card, or a SAM card, this reader meets your needs by carrying out commands directly from the PC.
⚙️ PC/SC Specifications
This reader is fully compliant with the ПК/СК standard, ensuring it meets the highest levels of security and interoperability for smart card operations. It supports APDU commands as defined in ISO 7816, ensuring fast, secure, and accurate data exchange between the reader and the card.
Спецификация:
| Items | Технические параметры |
|---|---|
| Протокол | USB CCID |
| Тип разъема | Стандартный USB-порт типа А |
| Напряжение питания | Через USB-порт |
| Скорость | Полная скорость USB (12 Мбит/с) |
| Стандартный | ISO 7816, части 1–3, класс A, B, C (5 В, 3 В, 1,8 В) |
| Протокол | Т=0; Т=1; Поддержка карт памяти |
| Ток питания | Макс. 50 мА. |
| Скорость чтения/записи смарт-карты | 9,6 Кбит/с – 480 Кбит/с |
| Защита от короткого замыкания | (+5) V/GND на всех контактах |
| Тактовая частота | 4 МГц |
| Циклы вставки карт | Мин. 100 000 |
| Режим связи с ПК | ПК/СК |
| Онлайн загрузка | Поддержка онлайн-загрузки ISP. |
| Вес нетто | Прибл.: 0,3 кг (без аксессуаров) |
| Стандарт ROHS | Соответствует стандарту ROHS. |
| Температура | 0 °С – 60 °С |
| Влажность | Макс. 90% (без конденсации) |
Функции :
• USB Full Speed Interface
• Plug and Play – CCID support brings utmost mobility
• Smart Card Reader:
• SupportsISO7816ClassA,BandC(5V,3V,1.8V)cards o Supports CAC (Common Access Card)
• Supports J-LIS Card
• Supports microprocessor cards with T=0 or T=1 protocol
• Supports memory cards
• Supports PPS (Protocol and Parameters Selection) o Features Short Circuit Protection
• Application Programming Interface:
• Supports PC/SC
• Supports CT-API (through wrapper on top of PC/SC)
• Supports AndroidTM 3.1 and later 1
• Compliant with the following standards:
• EN 60950/IEC 60950
• ISO 7816
• EMVTM Level 1 (Contact) o PC/SC
• CCID
Notes:
2) Keep the card reader clean without any oil or dirt.
3)IC card insertion direction: the chip of the IC card upward, and insert the card from the front.
