Leitor de cartão Pcsc/Ccid com tipo padrão USB para caça-níqueis
This PCSC/CCID Standard Type A USB card reader strictly adheres to the PCSC (Personal Computer Smart Card) specification and CCID (Chip Card Interface Device) protocol. It is widely compatible with various contact – type smart cards (such as IC cards, CPU cards, identification cards, financial IC cards, etc.), and is an ideal choice for scenarios such as government affairs, finance, enterprises, and healthcare.
Descrição
Government and Public Services: Supports the expansion of ID card readers, social security/medical insurance information querying, housing provident fund service handling, etc.
Finance and Payment Fields: Compatible with bank USB keys and financial IC cards, used for online banking transfers and POS terminal identity verification, compliant with the PCI DSS security standard.
Enterprise and Office Scenarios: Enables employees to log in to computers with employee cards, access encrypted files, and authenticate for VPN networks. It also supports system – level identity verification.
Medical and Education: Adapted for medical insurance card settlement during medical treatment, campus card identity verification, library borrowing card information reading, etc.
Especificação:
| Protocolo | IDCC USB |
|---|---|
| Tipo de conector | USB tipo A padrão |
| Power Source Tensão de alimentação | Da porta USB 5 V |
| Velocidade | Velocidade total USB (12 Mbps) |
| Padrão | ISO 7816 Partes 1-3, Classe A, B, C (5 V, 3 V, 1,8 V) |
| Corrente de fornecimento | Máx. 50 mA. |
| Velocidade de leitura/gravação de cartão inteligente | 9,6 Kbps – 480 Kbps |
| Proteção contra curto-circuito | (+5) V/GND em todos os pinos |
| Frequência do relógio | 4MHz |
| Ciclos de inserção de cartões | Min. 100.000 |
| Modo vinculado ao PC | PC/SC CT-API (through wrapper on top of PC/SC) |
| Baixar on-line | Suporte para download on-line do ISP. |
| Peso líquido | Aprox.: 0,3 Kg (sem acessórios) |
| Padrão ROHS | Cumprir com o padrão ROHS. |
| Temperatura | 0 °C – 60 °C |
| Umidade | Máx. 90% (sem condensação) |

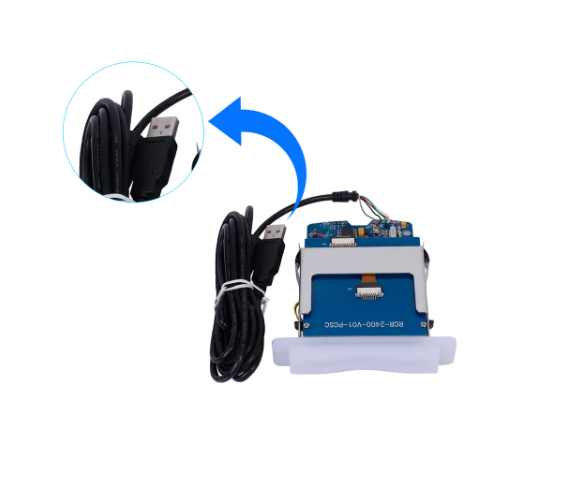

Standard Type A USB interface: It adopts gold-plated contacts to reduce the risk of oxidation. The number of insertions and extractions is ≥10,000 times to ensure stable long-term contact.
In addition to the standard Type A USB, a USB-C interface version can be added.
We deeply understand that the stability of industrial-grade equipment depends on full-life-cycle support. Therefore, we provide a complete after-sales system:
1,The whole machine is under warranty for 1 years (including the housing, interfaces, and internal circuits)
2, 7×12-hour online technical team (email/phone/instant messaging), providing driver installation, protocol debugging, and answers to system compatibility questions.
