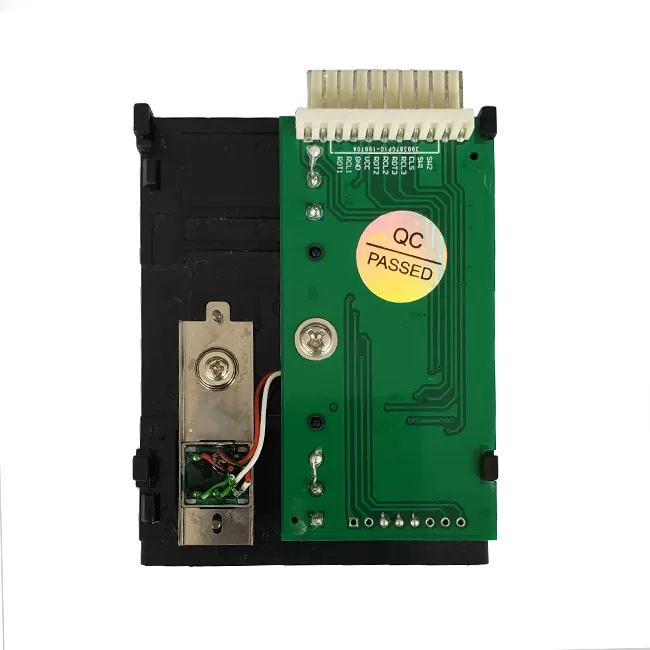

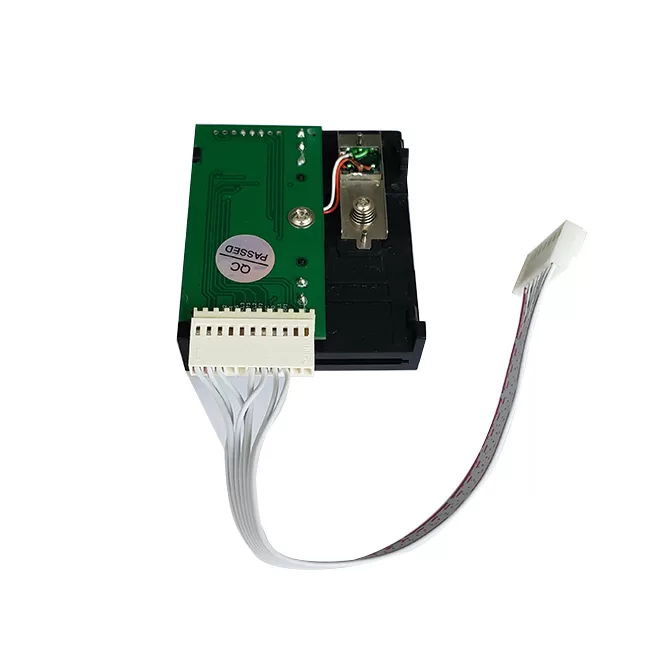

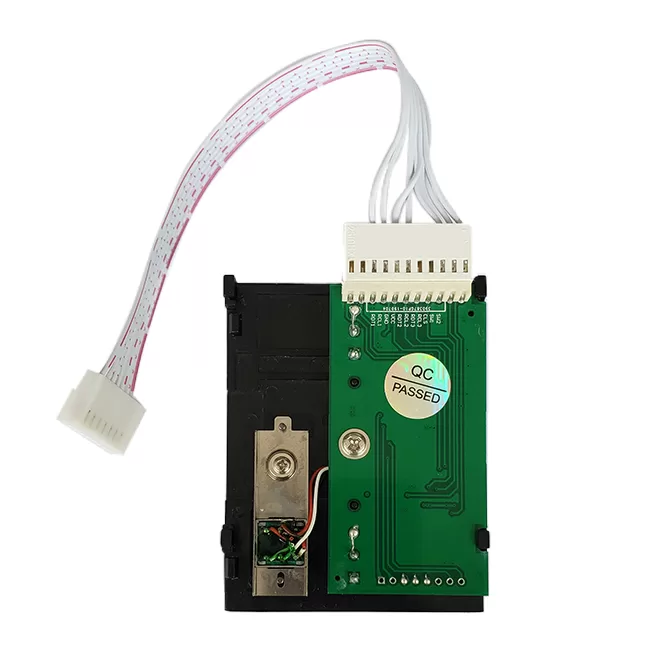

Half-Insert Magnetic Card Reader with Triple Tracks TTL Interface

RCR-2101 is the manual half-insert magnetic card reader with TTL interface, and reads approximately 60% of the magnetic stripe and reads magnetically encoded data from magnetic stripes that conform to ISO standards and decodes them to CLS, RCL, and RDT

Descrição

Advanced Half-Insert Magnetic Card Reader

The r-Cloud half-insert magnetic card reader offers accurate and reliable reading for magnetically encoded data. It supports ISO-standard magnetic stripes and decodes data into CLS, RCL, and RDT formats. With its TTL interface and compact form factor, it integrates seamlessly into a variety of devices.

High-Precision Triple-Track Reading

Equipped with a 3-dimensional head mounting design, this card reader ensures optimal contact with minimal wear. Its universal head mounting allows quick switching between tracks, enabling efficient reading across triple-track magnetic stripes. It can handle high-coercivity stripes up to 3,500Oe, ensuring wide compatibility.

Durable Structure and Smooth Operation

The device features a spring-and-steel axis-action card guidance system for stable, smooth operation. Its custom ICs deliver 24% jitter compensation, allowing accurate data capture even at varied card feeding speeds. This robust design guarantees long service life and low maintenance.
