RFID Card Reader/Writer with Rfid Tag RS232/USB for Casino

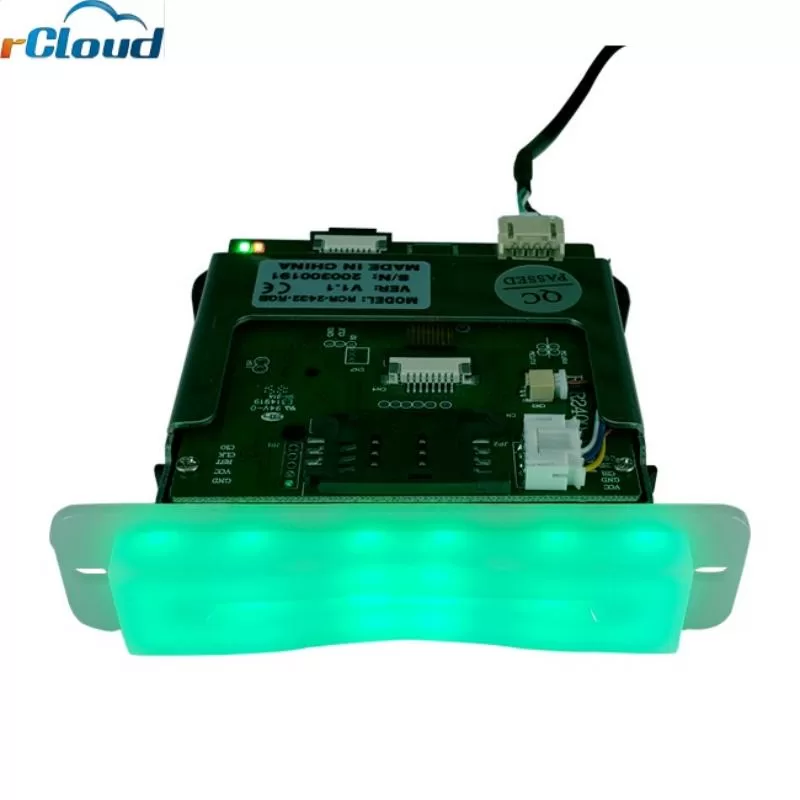

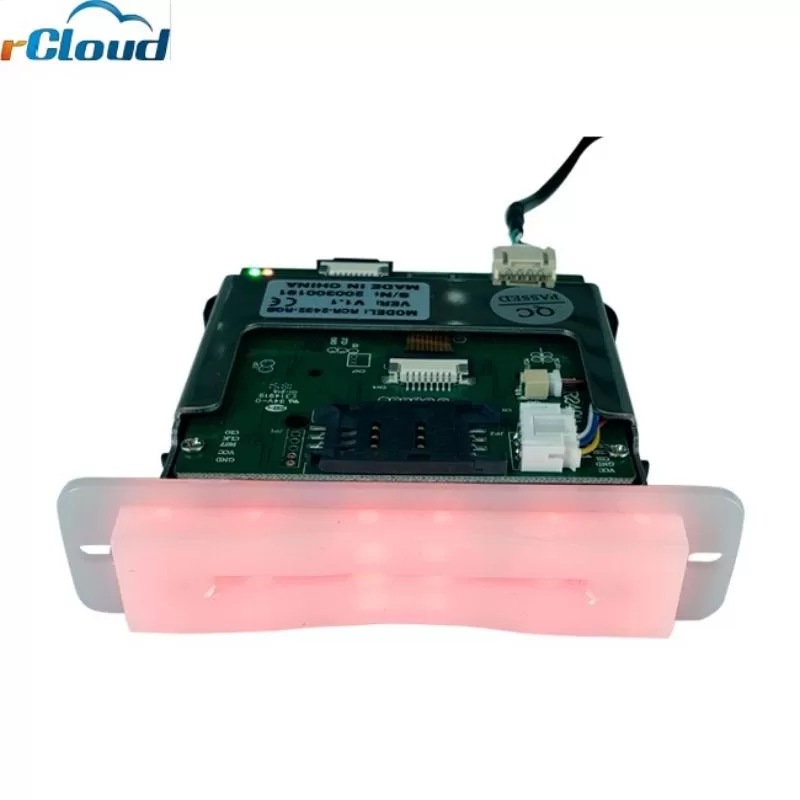

RCR-2330 is manual insertion Hybird card reader & writer which read and write RFID contact card. The Semi-Transparent Bezel light transmittance reaches 85%-92% (ensuring uniform transmission of LED light). The surface is hardened (hardness ≥ 3H), scratch-resistant and fingerprint-resistant. Meanwhile, it has a temperature resistance range of – 25ºC to 80ºC, adapting to complex environments.
Description
Size and Orientation
The 27-inch screen size provides a spacious viewing area, ensuring that the content displayed is easily visible and attention-grabbing. The horizontal orientation of the display allows for seamless integration into various casino environments, such as slot machine banks, gaming tables, or promotional areas.

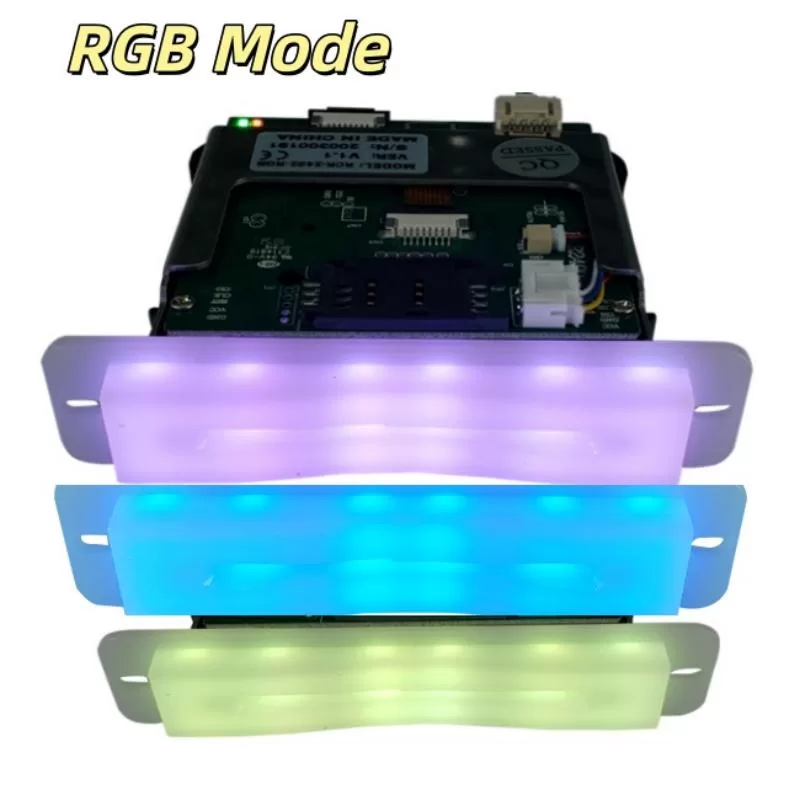

The three primary colors in RGB mode can be controlled by software to achieve “color mixing and dynamic switching”, endowing the visual interaction of the card reader with more flexibility and meeting the personalized needs and functional expansion of different scenarios.
The RGB mode addresses the pain points of monochromatic/bichromatic modes, such as “blurred signals, limited scenarios, and monotonous experience,” through “precise state differentiation, full light scene adaptation, flexible experience expansion, and economical energy consumption costs.” It ultimately achieves the goal of “smoother user operations and more stable device operation.”
Specification
| Voltage input | DC 5.0±5% V/USBpower supply |
|---|---|
| Current consumption | Static current: < 50 mAPeak current : < 200 mA |

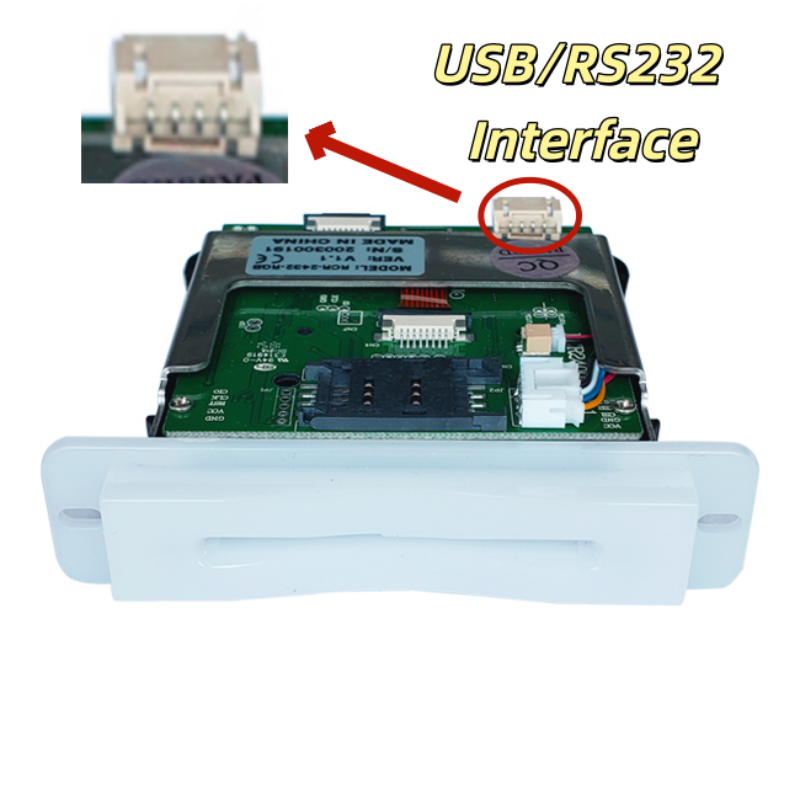

| Interface | RS-232 / USB |
| Card Specification | Width:53.92~54.18 mm ,Length:85.47~85.90 mmThickness: 0.76~1mm(Ex-work standard 0.76mm) |
| Life time | Micro Switch:500,000timesIC card down force device and IC contact :300,000times |
| Error rate | IC card: read/write card 1000 times, error rate<1times(except dirty card causes error) |
| MTBF | >100,000hours (only electronic components)Note: 250times/each day,25days/each month,300hours/each month. |
| Environmental condition | Operation:-20ºC~50ºC, 0~90 % RH (Non-condensing).Storage: -25ºC~80ºC, 0~95 % RH (Non-condensing). |
| Reliability | A. Vibration: Frequency range: 5~50Hz; accelerated speed: 2m/s2(0.2g ,) Vibration direction and time: toward to X,Y,Z. each direction for 15 mins. Amplitude: 2mm; all of functions don’t be influenced after vibration.B. Shock: 294m/s2(30g),11ms ,once for each direction X,Y,Z. all of functions don’t be influenced after shock.(without package of card reader). |
| Online download | Support ISP online download. |
| Net Weight | Approx: 0.2 Kg (without accessories) |
| ROHS standard | Comply with ROHS standard. |
| IC card standard | ISO7816 ( AT24C0124;SLE4442,SLE4428;CPU T=0/T=1). |
| RF card standard | ISO1443-3/-4 (TYPE A,TYPE B, CPU card);1K series S50/S70/UL card read/write. ISO15693 for option |
Features :
1. Quick Scan. RFID identifier can identify and read several RFID tags at the same time!
2. Miniaturization and diversification of shape. RFID reading is not subject to size and shape restrictions
3.RFID tags can be further miniaturized and diversified forms of development to apply to different products.
4. Anti-pollution ability and durability.
5.RFID tag is the data stored in the chip, so can not be damaged.
6.RFID tags can be repeated to add, modify, delete RFID label stored in the data to facilitate the update of information.
7.Penetrating and barrier-free reading.
8.RFID has a maximum capacity of several megabytes.
9.Security. As RFID carries electronic information, its data content can be protected by password, so that its content is not easy to be forged and altered.
