Magnetic RF Hybrid Card Reader with USB Interface Barcode

Magnetic RF Hybrid Card Reader with USB Interface Barcode

Status Indication: The device is equipped with LED indicators and a buzzer. A successful card reading results in a steady green light and a short beep; a failed reading/writing leads to a flashing red light and a long beep; and a blue light flashes rapidly in case of a fault. Users can intuitively determine the working status of the device.
Firmware Upgrade: Supports online firmware upgrade via USB interface, allowing users to obtain new functions (such as added support for card protocols and optimized reading/writing stability) without returning the device to the factory, ensuring long-term adaptation to new industry demands.

Description

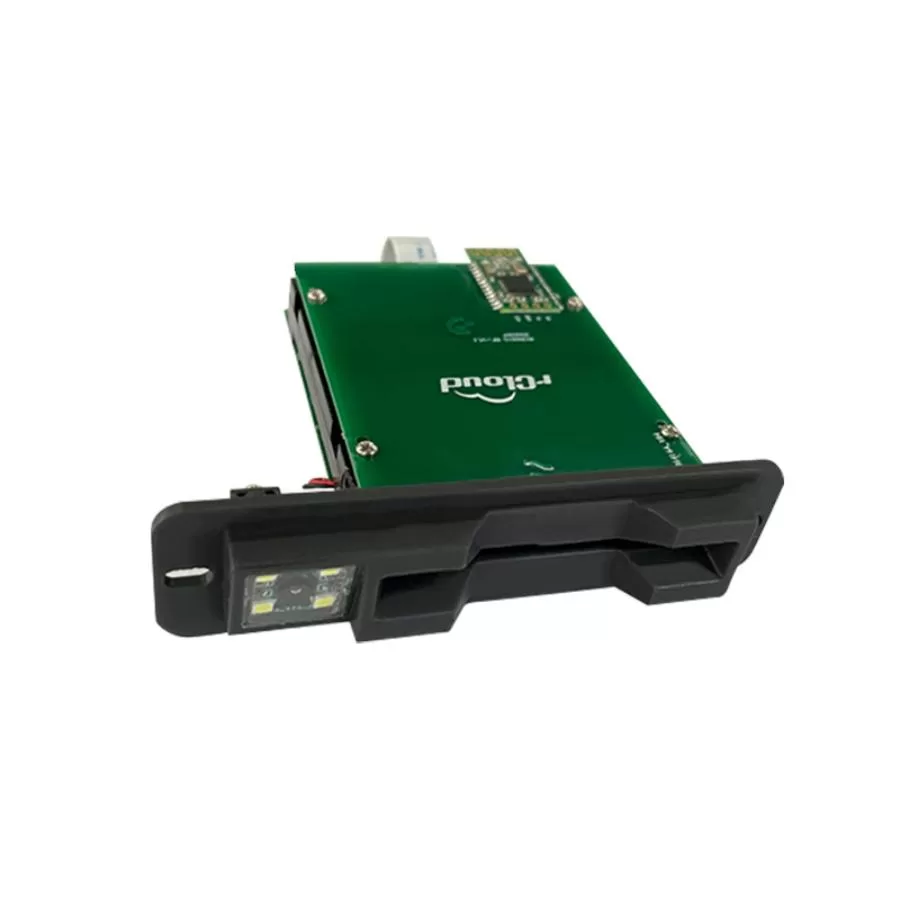

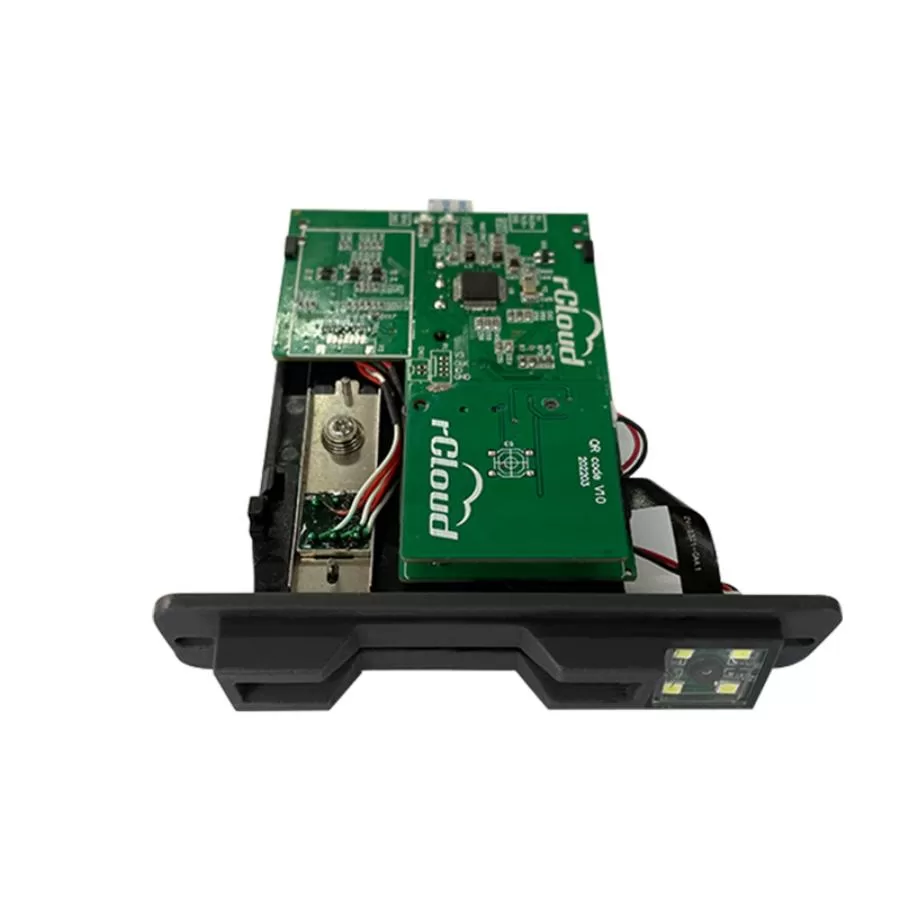

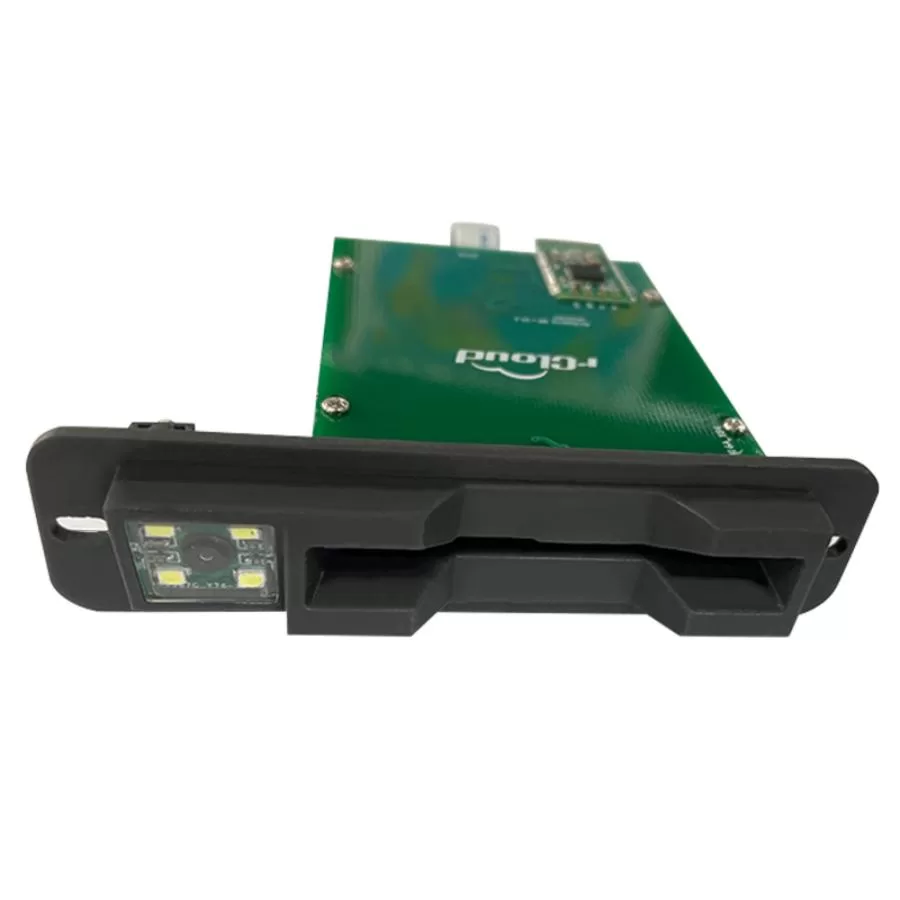

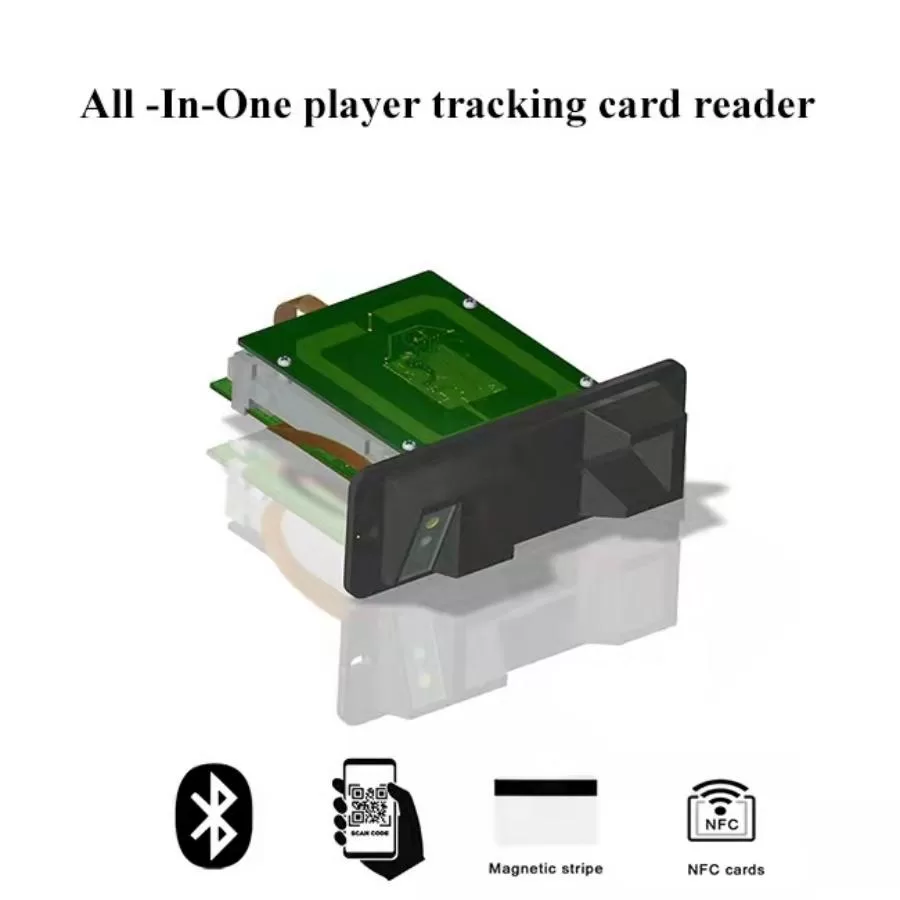

All -in-one player tracking card reader is the most advanced player card reader ever developed. It comes with QR code and Bluetooth capability as well as reading the player ID from the dual track magnetic stripe or from an embedded RFID chip. It turns every cell phone into a player card! This allows casinos to communicate with customers in real time. The built in QR code scanner identifies the player while the Bluetooth enables the slot machine to communicate with their cell phone to know when the player starts and stops playing. In addition to utilizing the universal use of cell phones it opens up a new world of being able to market to players in real time with bonus plays, player preferences, and unlimited casino offers that will boost player loyalty .This is all done while still retaining the capacity to accept mag stripe and RFID.

Specification:

Voltage input	DC 5.0±5% V /USB power supply
Current consumption	Static current: < 50 mA Peak current: < 200 mA
Temperature	Operating: 0°C ~ + 60°C Storage: -20°C ~ + 60°C
Baud rat	9600(default)~115200 BPS
Interface	RS232 / USB
Buletooth	Buletooth 4.0
RF Card	Comply with ISO1443-3/-4 standard with frequency of 13.56MHz; Contactless IC card (TYPE A, TYPE B, CPU card); S50/S70/UL/Plus card read/write.
QR Code	Barcode; 2D barcode : QR Code, Data Matrix, PDF417

The addition of the QR code scanning function enables the card reader to break through the limitation of “only adapting to physical card scenarios” and enter more scenarios that require “lightweight, temporary, and online-offline integration”, covering the needs that traditional devices cannot meet.

On the basis of traditional IC/RFID card reading and writing, adding a code scanning function to this card reader is not a simple addition of functional modules, but an upgrade from “single-card interaction” to “card + code dual-mode interaction”. It can solve user pain points in multiple scenarios and at the same time endow the device with stronger market competitiveness.
