Arcade debit system ESP32 Development Board IOT WIFI
It is based on the ESP32-S3, which is an
SoC with Wi-Fi and Bluetooth 5.0 communication. The SoC has hardware encryption
accelerators, RNG, HMAC and digital signing modules to meet security requirements.
Description
Overview:
The ESP32-S3 module is designed with performance in mind and is equipped with a dualcore Xtensa 32-bit LX7 processor clocked at up to 240 MHz. The built-in SRAM with a
capacity of 512 KB and ROM with a capacity of 384 KB is supported by an additional 8 MB
PSRAM and external Flash memory with a capacity of 8 MB. The USB Type-C port allows for easy updates and maintenance.

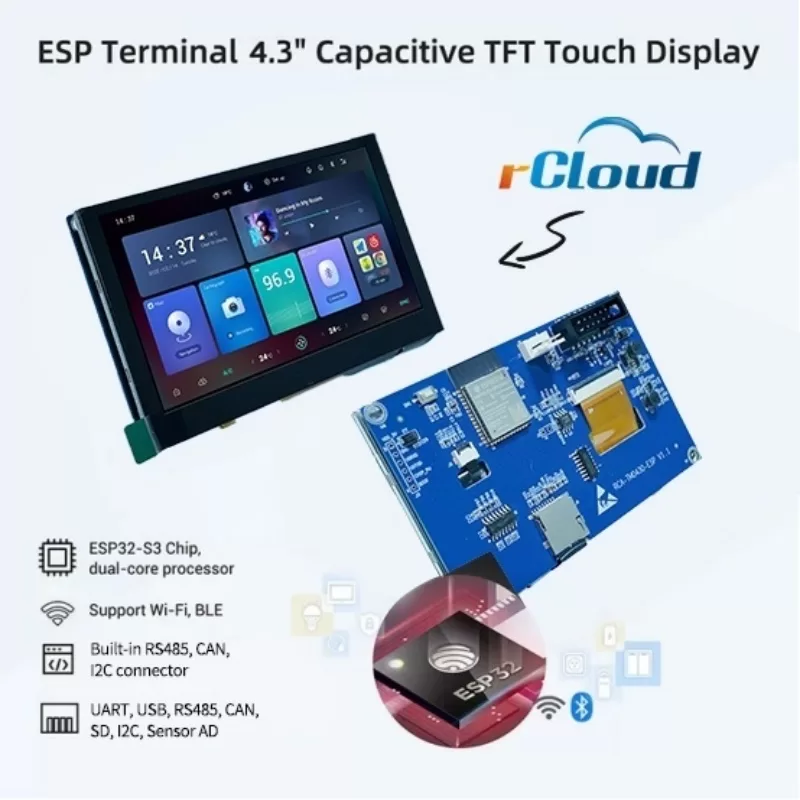

Specification:
| SP32-S3 module: | |
|---|---|
| 1.32-bit dual-core Xtensa LX7C processor | 2.512 KB SRAM, 384 KB ROM, 8 MB PSRAM |
| 3.Operating frequency up to 240 MHz | 4.External Flash memory 8 MB |
| 5.2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE) | 6.USB Type-C connector |
| 7.Built-in antenna | |

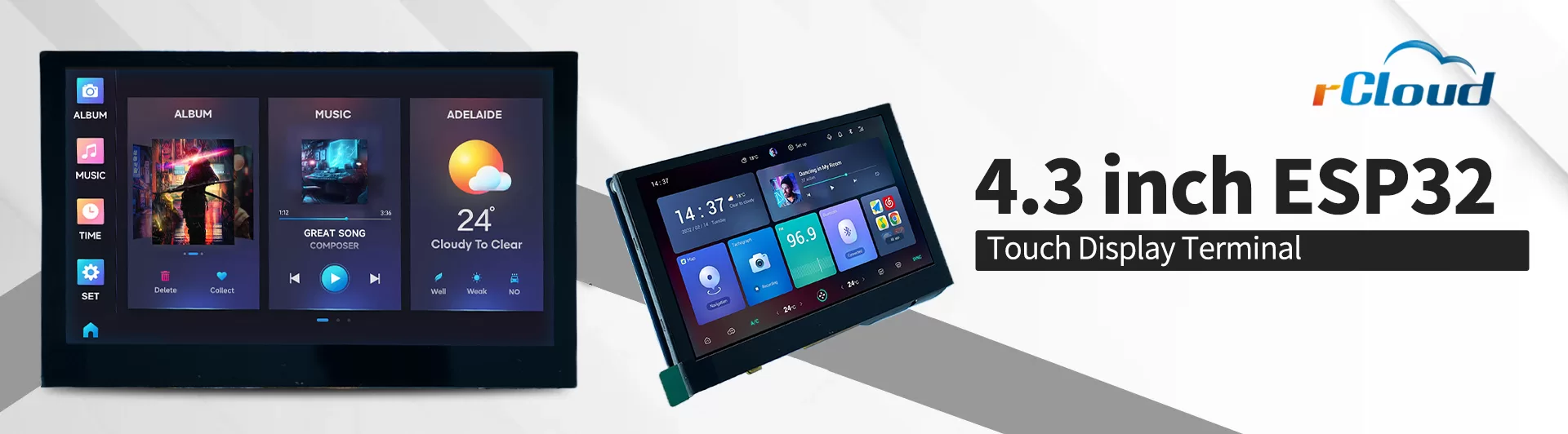

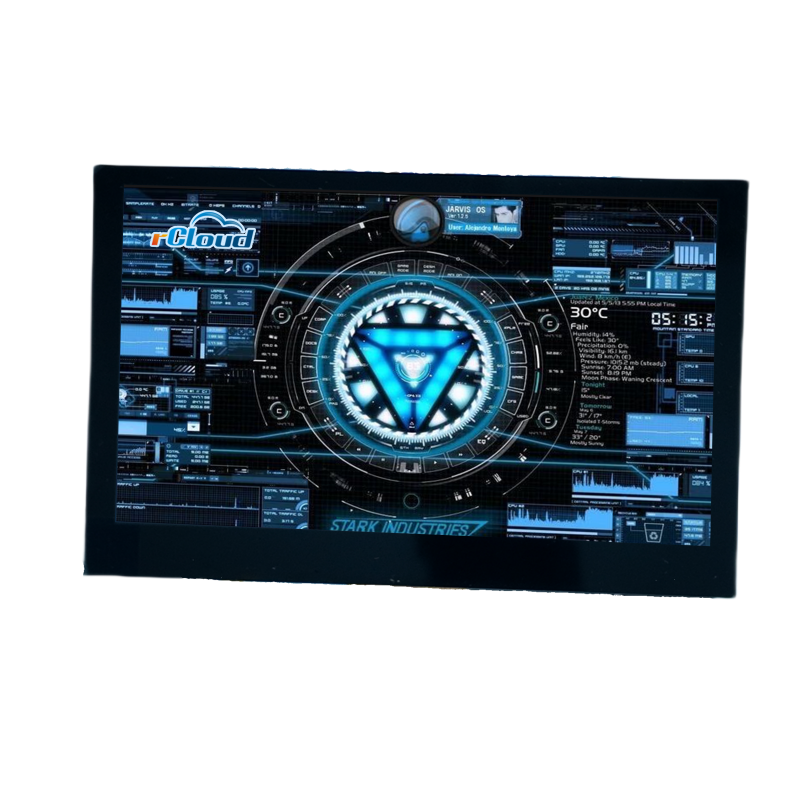

| Touch Display: | |
| 1.Diagonal 4.3″ | 2.Resolution 800×480 px |
| 3.65 thousand colors | 4.Capacitive touch panel |
| 4.Built-in RS485, CAN, I2C connector | 6.Built-in 3.7V lithium battery charging connector |
| 7.Dimensions: 106 x 68 mm | |
| Interface: | |
| UART, USB, RS485, CAN, SD, I2C, Sensor AD |
Features:
High-Performance SoC:
Dual-core Xtensa® 32-bit LX7 processor running at 240 MHz
Enhanced Security:
Hardware-accelerated encryption, RNG (Random Number Generator), HMAC, and Digital Signature modules
Smooth GUI Performance:
Optimized for LVGL and other embedded graphics frameworks
Rich Connectivity:
Multiple peripheral interfaces for rapid development
Versatile Applications:
Perfect for Human-Machine Interface (HMI), smart devices, and IoT solutions
Designed for performance and efficiency, this board enables fast prototyping while meeting stringent security requirements.
