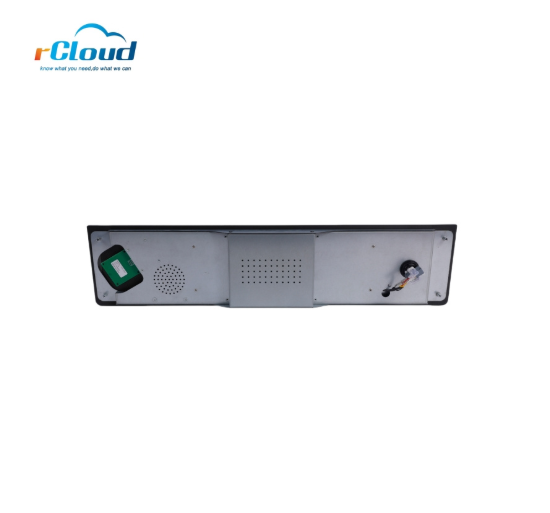

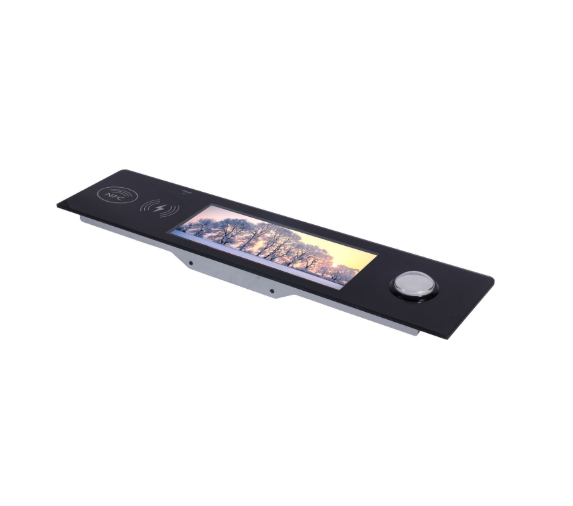

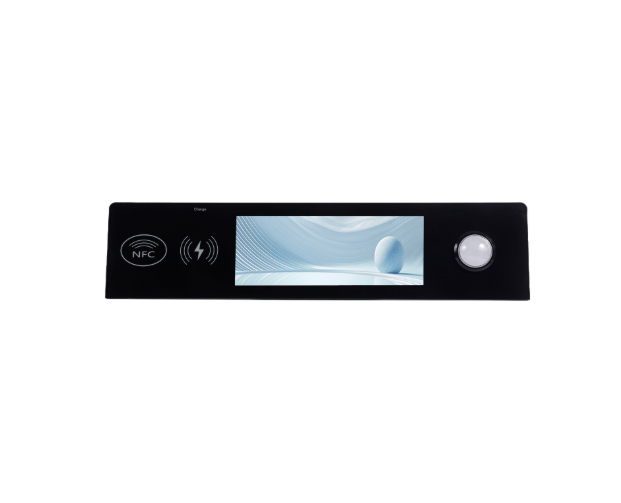

High-definition display Wireless Charging NFC Button Deck for Casino
One of our latest developments is an innovative button deck display that is ideally suited for integration into casino gaming machines. The used 12.3″ stretched panel has a resolution of 1920×720, a contrast ratio of 1200:1 and a viewing angle of 89° in all directions. The button deck display is equipped with NFC card reader, wireless charging function.
Description
Specification:
| Diagonal Size | 12.3 inch |
|---|---|
| Resolution | 1920(RGB) x 720 |
| Active Area(mm) | 292.032(H)×109.512(V) Aspect 8:3 |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Color Depth | 16.7M |
| Luminance | TYP 500 nits |
| Touch Technology | PCAP 5-Point Multitouch |
| Touch Drivers | Windows, Linux, Android |
| Voltage | +5V |
| Current | <120mA |
| Thickness | 6mm |
| Button Size | 60mm |
| Card Type | ISO14443A/B Mifare S50,S70,Plus,DESFire CPU card(T=0/T=1), ISO15693 |
| Luminance | TYP 500 nits |
High-definition and high-brightness display: clearly visible, adapting to the complex light environment of casinos
Adopts an IPS wide-viewing angle hard screen,even under scenarios where the casino lights shine directly and viewing is from multiple angles (such as players operating sideways or staff checking information remotely), the content on the screen remains clear without reflections, and information such as numbers, icons, and game rules is clearly visible at a glance.
Wireless charging: Charge whenever you place it, solving players’ “battery life anxiety”
The maximum charging power is 15W, and it can charge up to 50% of the battery in 30 minutes. Players do not need to look for a charging cable; they can simply place their mobile phones on the designated area of the display screen for automatic charging without interrupting the game process.
NFC Smart Identification: Fast interaction, improving operational efficiency
The NFC module adopts an encrypted transmission protocol and seamlessly interfaces with the casino management system. Player information and transaction data are encrypted throughout the entire process to prevent information leakage, complying with casino data security specifications.
Application:

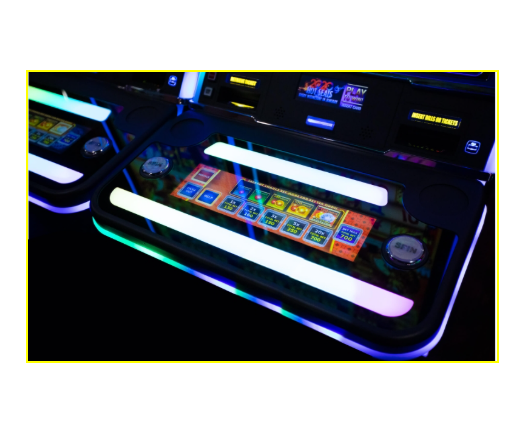

Casino gaming area: Improve game interaction efficiency
VIP Exclusive Area: Creating a High-End Customized Experience
Chip Redemption and Service Desk: Simplify Processes, Reduce Waiting Time
Casino public areas: convey information and guide traffic
Customized sizes: Full coverage from 10.1 inches to 21.6 inches, suitable for multiple scene spaces in casinos
1.Q: When will you make the delivery?
A: The delivery will be within 3-20 working days according to the size and quantities of your order.
2.Q: How does your factory do regarding quality control?
A:Quality is priority.Gamet people always attach great importance to quality controlling from the beginning to end.
3.Q: Do you accept personal customization ?
A:Yes we are professional manufacturer of hardware&software solution provider for gaming machine,Which are focus on R&D manufacturing and marketing Illuminated card reader,RFID card reader,Hybrid card reader and Player Tracking System for Global Gaming System.we have profession- al designer for your needs.
4.Q:If you are not online,how can i get contact with you?
A. We have all kinds of social sofeware to get in touch with each other, like whatsapp, skype, we chat, email and so on.We will reply customers ASAP.
