Esp32-S3 NFC Touch Arcade Debit System
This 4.0 Inch NFC Arcade debit system is an economical and efficient terminal developed using the ESP32-S3 development board.
Description
Overview:
The 4.0 inch ESP32-S3-Terminal is an inexpensive and efficient board with the ESP32 module equipped with a PCAP touch screen. It is based on the ESP32-S3. which is an SoC with WiFi and Bluetooth 5.0 communication. It supports NFC and QR reader functions. Users can control different LED effects according to their needs.
Specification:
| Power supply: | 12V , 5V(Type-C), POE (Option) |
|---|---|
| Display: | 4.0 inch (480*480) |
| Touch: | PCAP |
| Control board: | ESP32-S3 |
| Interface: | RS485, Wi-Fi, Biuetooth |
| Contactless IC card: | NFC, RFID ISO14443 TYPE A/B |
| QR Scan Engine: | CMOS 1280*800 |
| QR Code Type: | Micro QR, PDF417, QR Code, DataMatrix, Code128, EAN-13 |
| RGB light effect: | Programmable LED Lighting |
| Speaker(option): | Dual Speaker Systems |
| Amusement Function: | Support pulse signals of Coin and Ticket Devices |
| ESP-IDF: | ESP32_Display_Panel, ESP32_IO_Expander,LVGL |

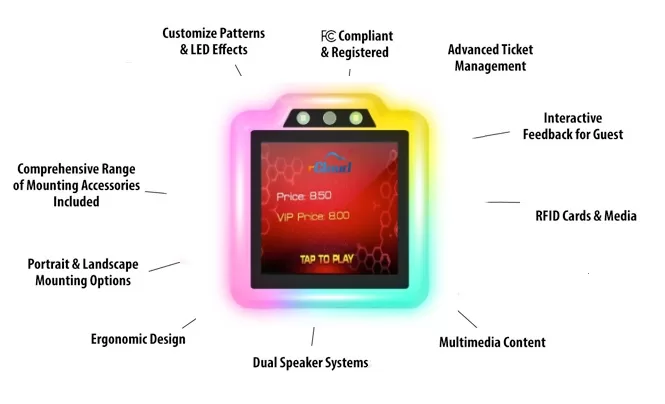

Features:
1.Cost-Effective Solution
Providing highly competitive prices, significantly reducing your initial investment and operating costs.
2.Support Read NFC & QR Code
Innovatively supports both NFC (near field communication) and QR code (two-dimensional code) reading, flexibly responding to various cards and mobile credentials, and highly compatible.
3.Fastest Card Reader in the Market
Equipped with cutting-edge card reading technology, it achieves industry-leading ultra-fast response (for example: <0.3 seconds), ensuring that the passage/verification process is extremely smooth and greatly improves efficiency.
4.Fully Customizable
Provides a full range of software and hardware customization services, and can tailor the appearance design (shell, logo), functional modules and software integration solutions according to your specific needs.
