58-80mm Thermal Printer Ticket Label for Kiosk Vending Machine
The 58-80mm Thermal Printer is a self-service terminal thermal printer, and it can support a print width of 58-80mm. It is suitable for self-service terminals such as financial self-service terminals, communication self-service terminals, coupon self-service terminals, ticket self-service terminals, queuing machines, etc.
Description
Overview:

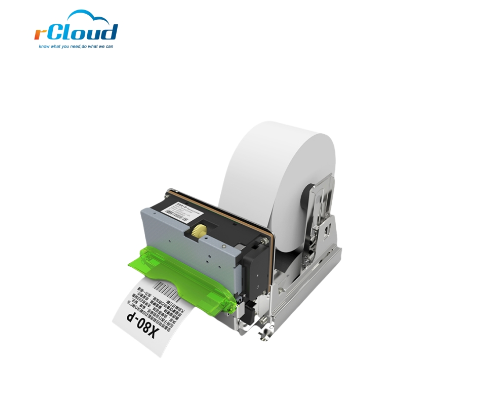

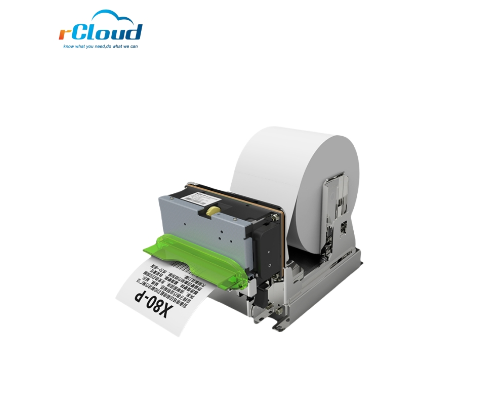

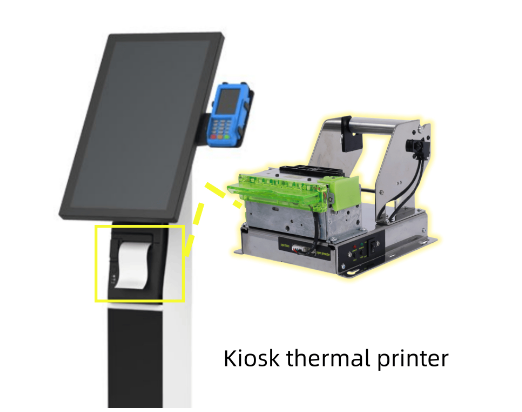

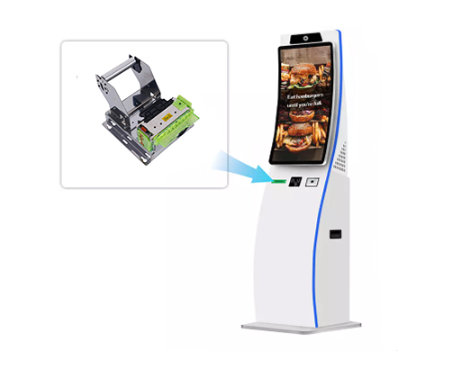

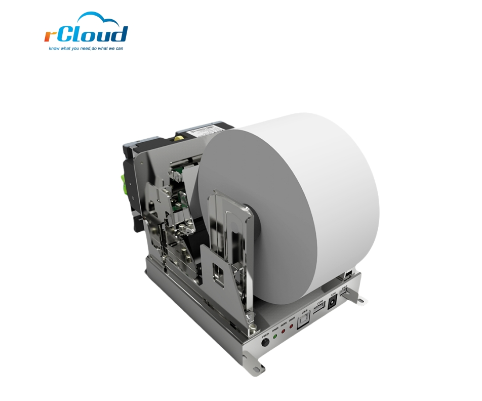

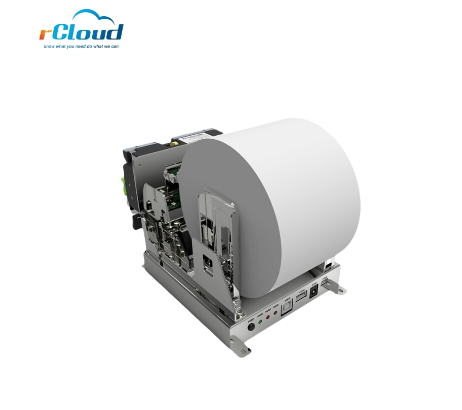

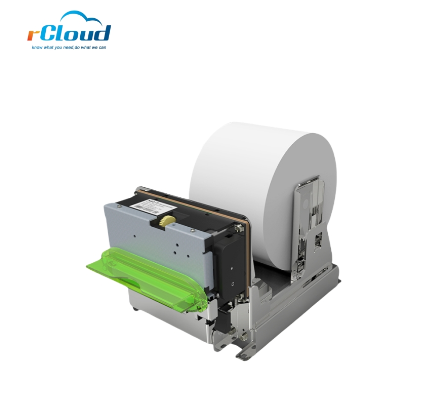

The 58-80mm Thermal Printer is 3 inch kiosk thermal printer which is consist of thermal printer head ,cutter and control board.It supports adjustable paper widths from 58mm to 80mm, making it suitable for various self-service terminal devices such as medical self-service terminals, tax terminals, vending kiosks, fuel dispensers, and queue management systems. It supports multiple interfaces (USB, serial, and network ports) and is compatible with various operating systems, ensuring stability and efficiency. Its compact design allows for easy integration into different terminal devices, making it an ideal choice for reliable commercial printing.
Specification:
| Printing | Print method | Thermal-line dot method |
|---|---|---|
| Print speed | Max:250mm/s | |
| Resolution | 203dpi(8dots/mm) | |
| Effective printing area | 80mm | |
| Character | Character set | ASCII,GBK,BIG5 and so on |
| Print font | ASCII:(9*17,9*24,16*18,12*24)Chinese:(24*24) | |
| The characters number per line | Font A(12*24):32Font B(9*17):42 GBK:16 | |
| Paper Roll specification | Paper type | Thermal paper roll |
| Paper width | 58-82mm | |
| Paper thickness | 55-200μm | |
| Max paper roll diameter/paper roll inner diameter | Max:150mm/Min:18mm | |
| Paper Feed method | Automatic feeding (straight out) | |
| detection | Head temperature detection | Thermistor |
| No Paper detection | Photoelectric detection | |
| Paper near end detection | Photoelectric detection | |
| Black mark detection | Photoelectric detection | |
| Seam Mark Detection | Photoelectric detection | |
| platen open detection function | Mechanical switch | |
| Baud rate | 9600bps-115200bps | |
| Instruction Set | ESC/POS Instruction Set | |
| Driver | Windows Driver | |

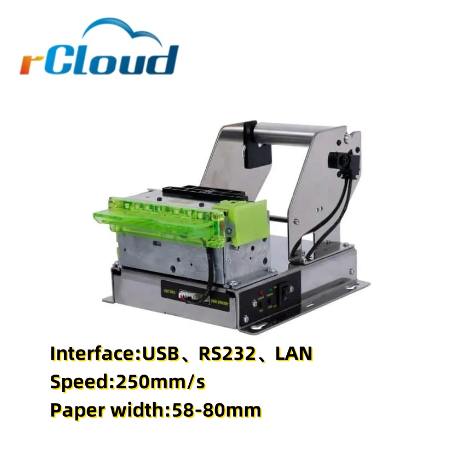

| Interface | USB,RS232,LAN | |
| Barcode | 1D code | UPCA,UPC-E,JAN13(EAN13),JAN8(EAN8),CODE39,ITF,CODABAR,CODE128,CODE93; |
| 2D code | QR code | |
| Reliability | Print Life | 100Km |
| Cutter life | >1000000cuts(When cutting paper with thickness greater than 0.1mm, 500000cuts) | |
| Cutter | Auto cutter | Support full cutter and half cutter simultaneously |
Features:
- Small size, easy to integrate into the terminal equipment
- Support for 80mm and 58mm wide printing paper
- Support for real-time control of print quality
- Support for automatic paper feed mode
- Voltage range: 24V ± 10%
- Two USB / RS232 communication modes are supported
- Support for GDI printing mode
- With the black mark positioning function, to ensure the consistency of the bill length
- With the paper will do the detection function, advance warning of paper surplus
- Support the paper port flash light status prompt

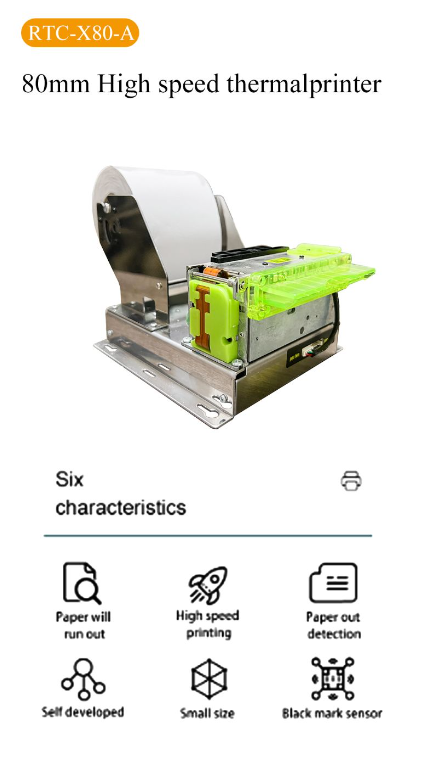

RCT-X80-A printer is a miniaturized 80mm thermal printer. With high speed, high quality, low noise and other sticking points, the paper roll is easy to install the mechanism design, make the user to operate more convenient and fast. The maximum print width can reach 80mm, thus enabling full-format printing. At the same time,RCT-X80-A with special paper shaft and paper retaining mechanism can meet the use of 58mm paper width, truly realize the multi-purpose function, can be widely used in various fields of terminal equipment.
