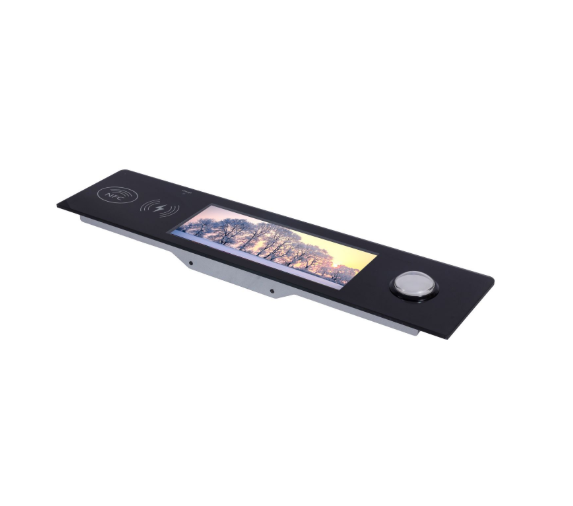

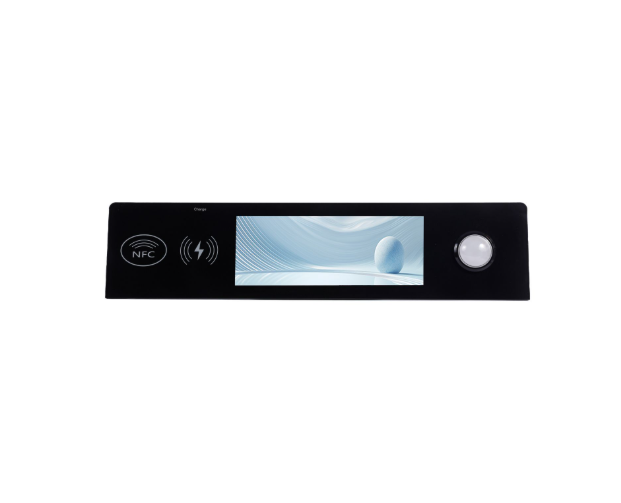

This 12.3-inch extended panel has a resolution of 1920×720, a contrast ratio of 1200:1, and a viewing angle of 89°. The key panel display is equipped with an NFC card reader and wireless charging function. At the same time, this is an innovative key panel display that can support customized settings, which is very suitable for integration into casino gaming machines and customized settings according to the actual size of the customer cabinet.

12.3inch Customized Button Deck Display Wireless Charging

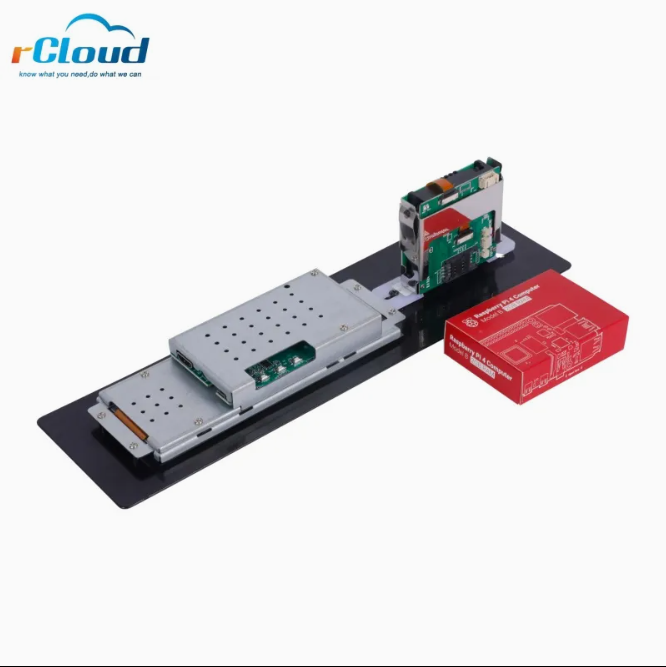

Thanks to PCAP touch technology, the device is particularly easy and intuitive to operate. By individually adjusting touch settings – taking into account the respective glass thickness – perfect touch functionality is ensured at all times. The cover glass used has a thickness of 6mm and is thus particularly resistant to potential external force. By placing a personalised card on the integrated NFC reader, users can identify themselves directly on the device and execute corresponding actions. While operators are using the slot machine, they can charge their smartphone wirelessly/inductively in parallel on a specially provided field. The button deck monitor is controlled by our proprietary LCD controller boards, which are specifically designed to meet demanding industrial requirements.

Description

On request, we can develop individual unit designs for gamingmachines that are precisely tailored to customer requirements. With regard to panel size, formats, glass designs as well as various additional features, such as haptic feedback, knob-on displays, Ambient Light Control etc., there are almost no limits to the individualisation possibilities.

Specification:

Display

Diagonal Size
12.3inch
Resolution
1920(RGB) x 720
Active Area(mm)
292.032(H)×109.512(V) Aspect 8:3
PixelPitch(mm)
0.1521 (H) x0.1521(V)mm
Pixel Configuration
R.G.B. Vertical Stripe
Technology Type
LTPS
ColorDepth
16.7M
Luminance
TYP500nits
Interface
HDMI
Touch Screen

Touch Technology
PCAP 5-PointMultitouch
TouchDrivers
Windows,Linux, Android
Interface
USB

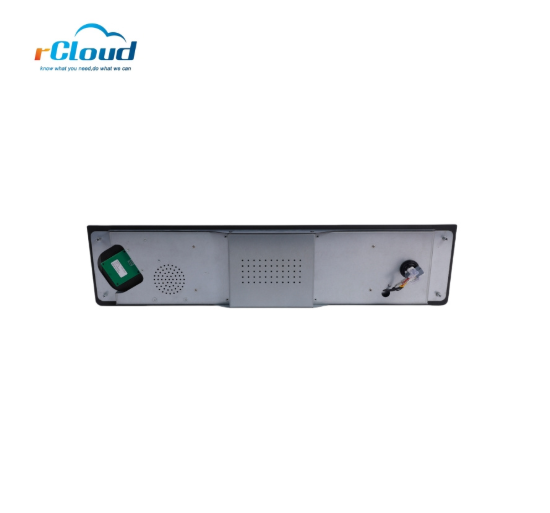

NFC CardReader

Voltage
+5V
Current
<120mA
Card Type
ISO14443A/B,S70,Plus,DESFireCPU card(T=0/T=1),ISO15693
Interface
USB/RS232
Wireless Charging

Charging Standard
WPC V1.2.4
Product Standard
EPP
OS
iOS/Android
InputPower
12V/1.5-2A
OutputPower
15W/10W/7.5W
ChargingEfficiency
76%
ChargingDistance
5-12mm
Tempered Glass

Thickness
6mm
Button

Size
60mm

This capacitive usb touch screen button deck display is perfectly suited for today’s dynamic gaming floors, where immersive experiences and cutting-edge technology drive player satisfaction. By combining stunning visual clarity with seamless functionality, it significantly enhances player engagement.

FAQ:

1.What is the display size and resolution?
It features a 12.3-inch display with an 1920×720 resolution.

2.What is the display interface?
HDMI.

3.What is the touch technology?
PCAP 5-Point Multitouch.

4.What is the button size?
60mm.

5.Do you offer personalized customization?
Absolutely! As a professional manufacturer and solution provider specializing in gaming machine hardware and software, we offer comprehensive customized design services to meet your specific requirements.

6.Do you offer after-sales support?
Yes, we have a dedicated after-sales support team to promptly address any issues or inquiries you may have.
