12.3 inch Button Deck Display NFC Rreader Wireless Charging
Our latest innovation is an advanced button deck display system designed specifically for seamless integration into modern casino gaming machines. This cutting-edge solution features a high-quality 12.3-inch stretched display panel with an ultra-wide 1920×720 resolution, delivering crisp, vibrant visuals perfect for interactive gaming interfaces.
Description
The display boasts exceptional performance characteristics, including a high 1200:1 contrast ratio for deep blacks and bright colors, along with wide 89° viewing angles in all directions-ensuring optimal visibility for both players and casino staff from any position.
Specification:
| Feature | Specification |
|---|---|
| Display | |
| Diagonal Size | 12.3 inch |
| Resolution | 1920(RGB) x 720 |
| Active Area(mm) | 292.032(H)×109.512(V) Aspect 8:3 |
| Pixel Pitch (mm) | 0.1521 (H) x 0.1521 (V) mm |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Technology Type | LTPS |
| Color Depth | 16.7M |
| Luminance | TYP 500 nits |
| Interface | HDMI |
| Touch Screen | |
| Touch Technology | PCAP 5-Point Multitouch |
| Touch Drivers | Windows, Linux, Android |
| Interface | USB |
| NFC Card Reader | |
| Voltage | +5V |
| Current | <120mA |
| Card Type | ISO14443A/B,S70,Plus,DESFire CPU card(T=0/T=1), ISO15693 |
| Interface | USB/RS232 |
| Wireless Charging | |
| Charging Standard | WPC V1.2.4 |
| Product Standard | EPP |
| OS | iOS/Android |
| Input Power | 12V/1.5-2A |
| Output Power | 15W/10W/7.5W |
| Charging Efficiency | 76% |
| Charging Distance | 5-12mm |
| Tempered Glass | |
| Thickness | 6mm |
| Button | |
| Size | 60mm |
Beyond its impressive visual capabilities, the button deck display is equipped with a built-in NFC card reader for secure, contactless player identification and transactions. Additionally, it incorporates wireless charging functionality, allowing players to conveniently charge compatible devices while gaming. This combination of advanced display technology and smart features creates an enhanced user experience while maintaining the reliability and durability required in casino environments.

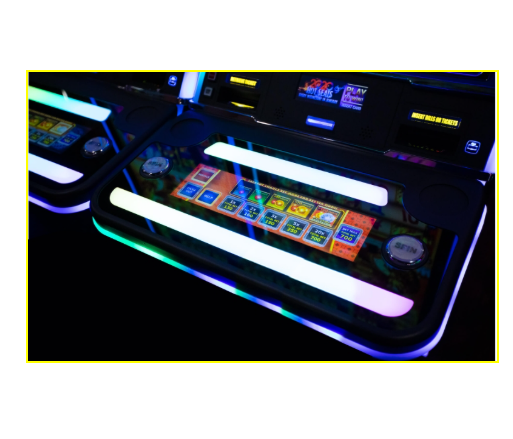

This state-of-the-art button deck display is perfectly suited for today’s dynamic gaming floors, where immersive experiences and cutting-edge technology drive player satisfaction. By combining stunning visual clarity with seamless functionality, it significantly enhances player engagement.
