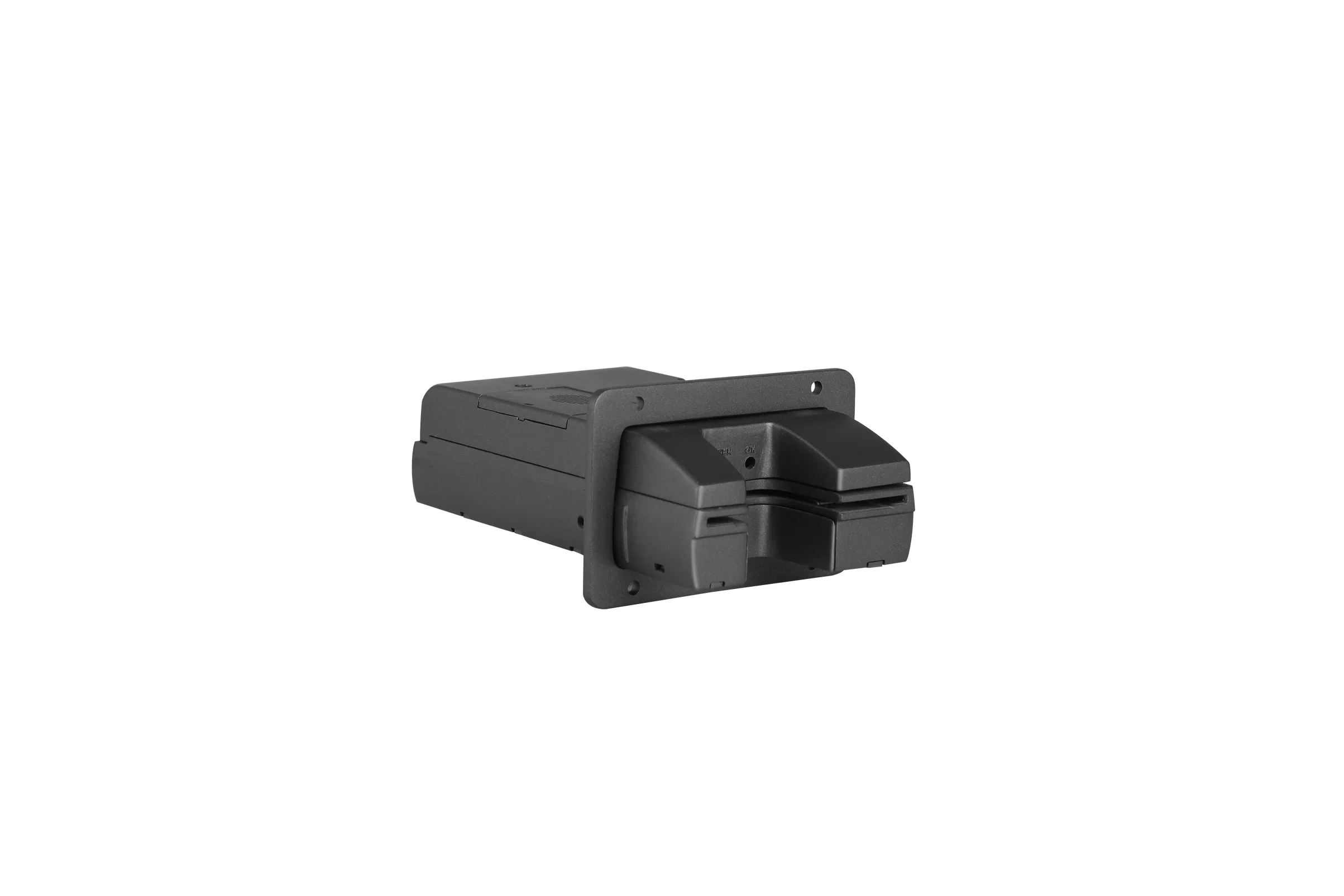

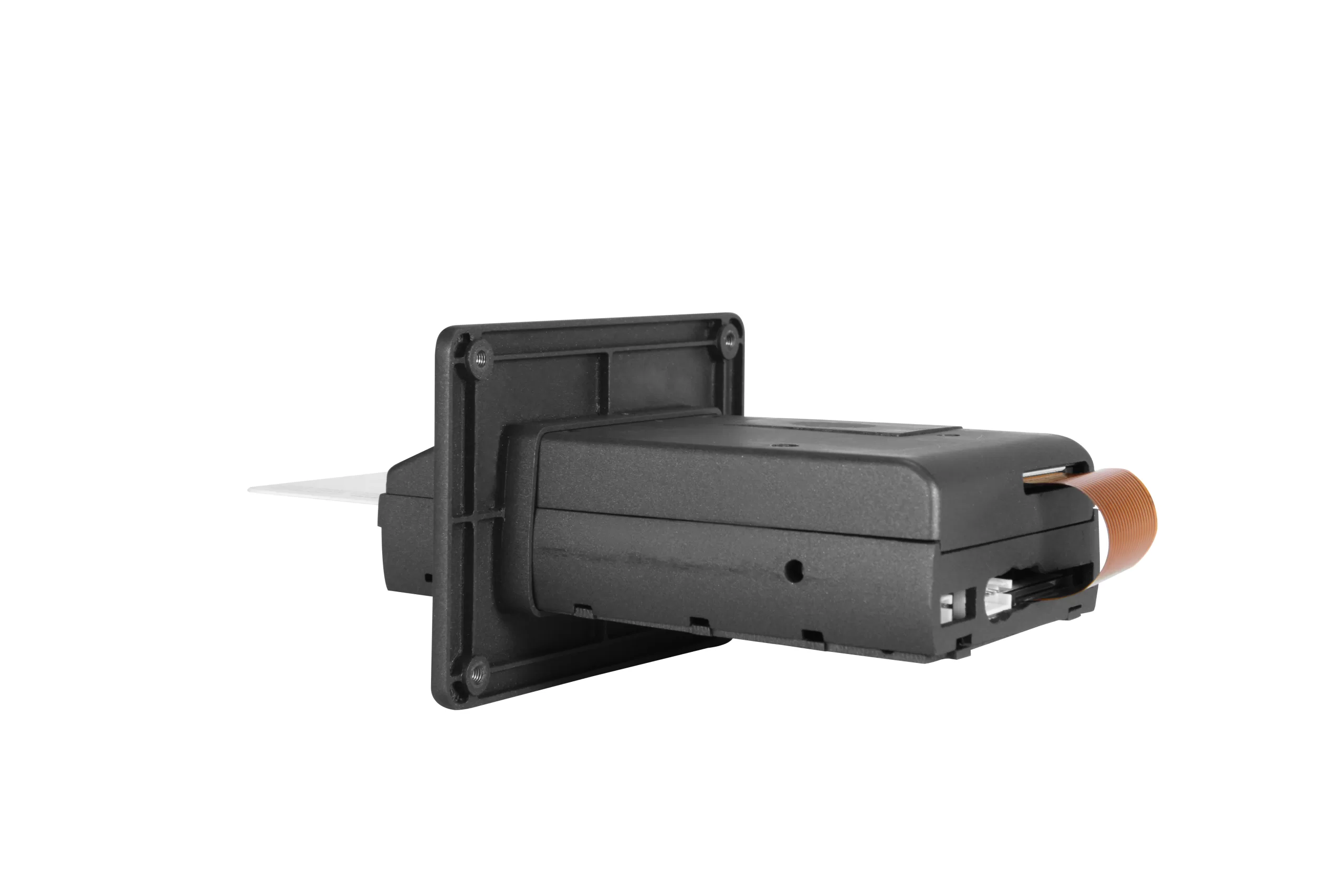

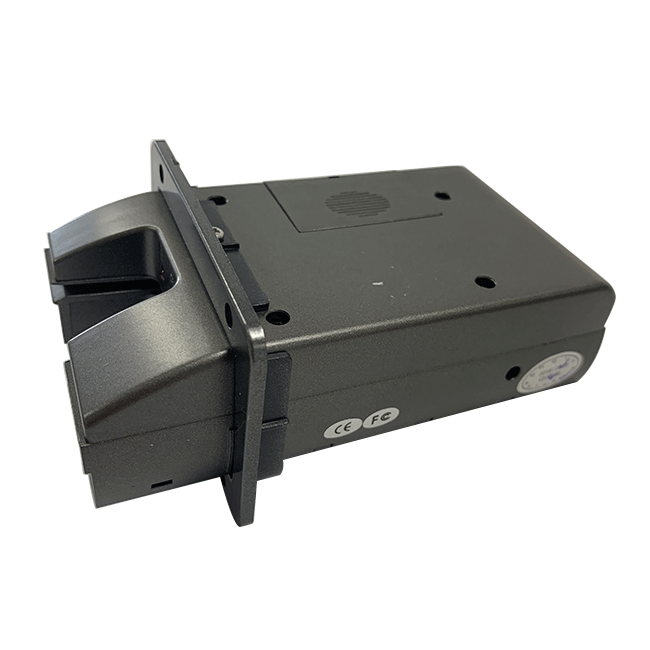

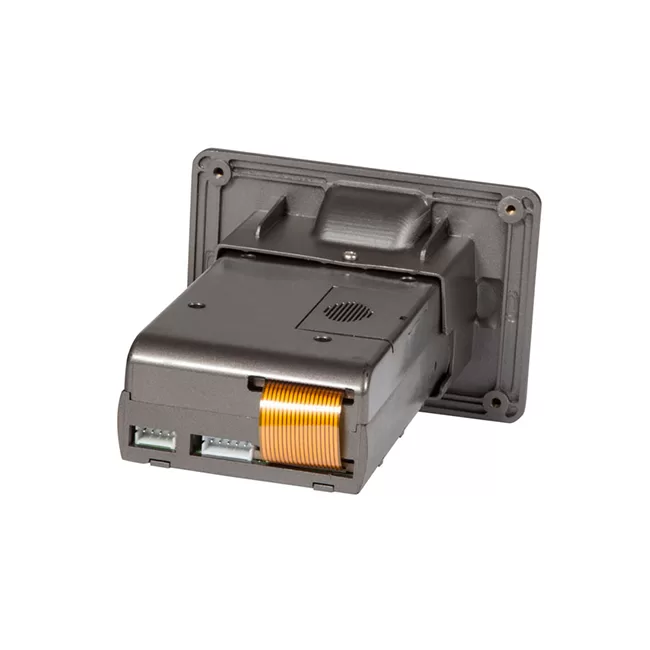

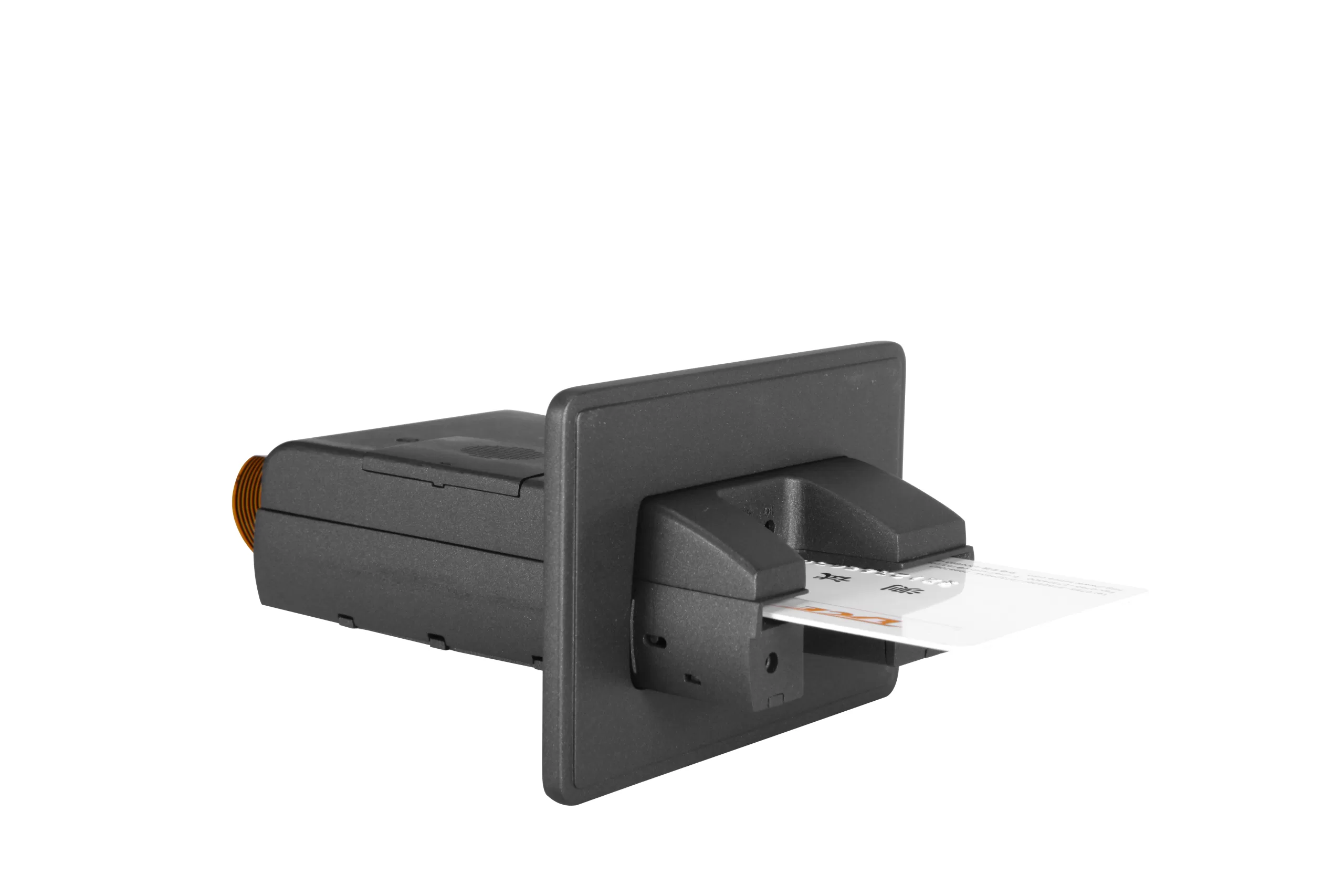

IC&RFID Manul Insert Magnetic Kiosk Card Reader
futures:

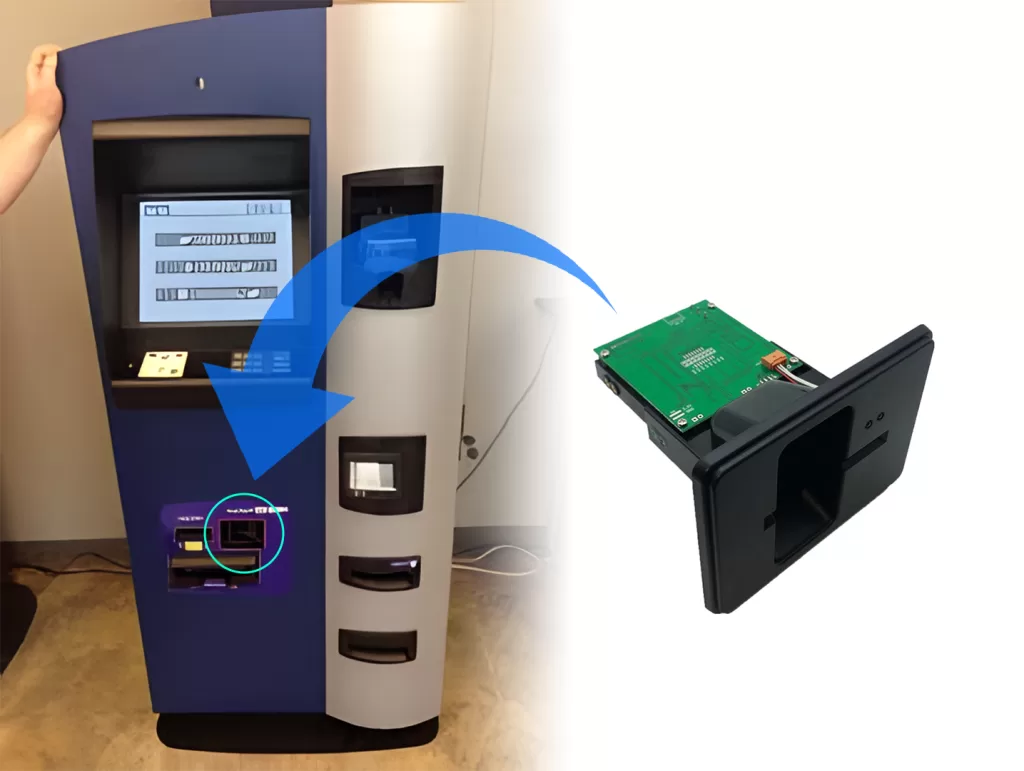

1. Multimedia kiosk
2. Multimedia kiosk
3.Access control system
4.Vending machine
5.Gaming machine
6.Refueling termina
説明

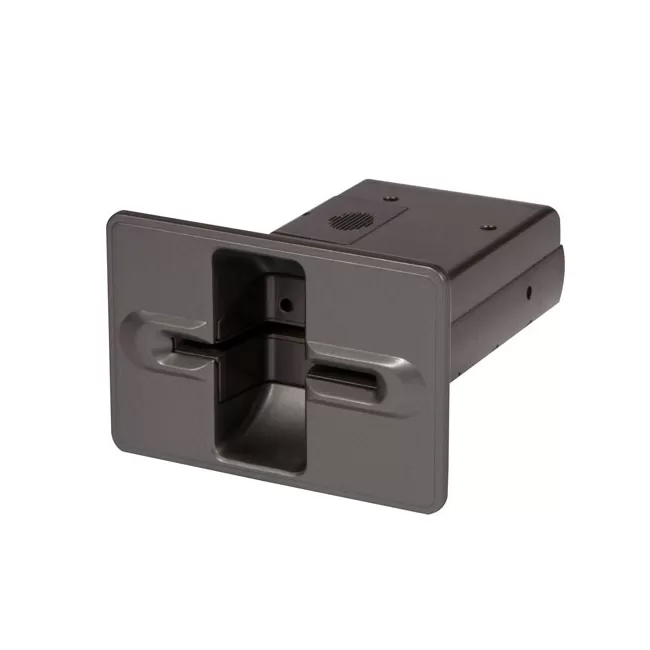

This IC&RFID Manul insert Magnetic Kiosk Card Reader with Auto Lock Structure adopts industrial design, good resistance to abrasion and corrosion, fit for high or low temperature and dusty environments. Bayonet smooth, make sure it has very good adaptability for all kinds of deformation card. Electric lock will lock card after inserted completely, ensure the card was ejected via command after the reading writing operation completion. Avoid wrong operation .There are two size front mounting rack for your different choice. IC&RFID Manul insert Magnetic Kiosk Card Reader with Auto Lock Structure support multiple card read write.
仕様：
| Power supply | 5VDC _24VDC(Max current100mA,Static current 30mA) |
|---|---|
| Operation temperature | -20 ºC to 85 ºC |
| Operation Humidity | 30-90% |
| インタフェース | RS232/USB for option |
| Insertion position | Fix position |
| Operation condition | Installed in the operation cabinet |
| Magnetic card | Above 800,000 passes |
| IC life | Above 500,1000passes |
| Card | Wide : 54 ± 0.5 mm Length : 85 ± 0.5 mm thickness: 0.7-1.2mm Card Material: Paper card or polyester card |
| N/W | 200g |
With power indication light and signal indication light.
Smooth card guide devise:, reliable, precise, steady.
Eyewinkers prevention: Half landing IC card contact with powerful self-cleaning function, one side open design,
Eyewinkers prevention: Half landing IC card contact with powerful self-cleaning function, one side open design,
automatically obviate eyewinkers and broken card
応用：
1. Multimedia kiosk
2. Multimedia kiosk
3.Access control system
4.Vending machine
5.Gaming machine
6.Refueling terminal
