Étiquette de billet d'imprimante thermique 58-80mm pour distributeur automatique de kiosque

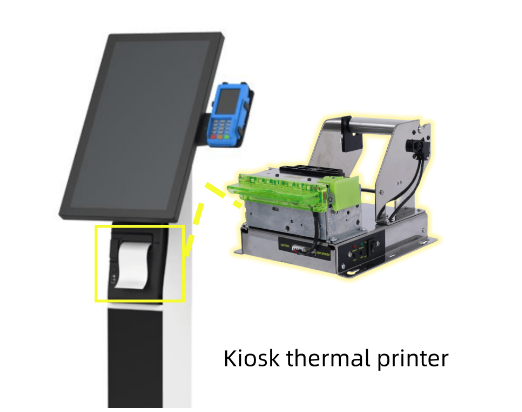

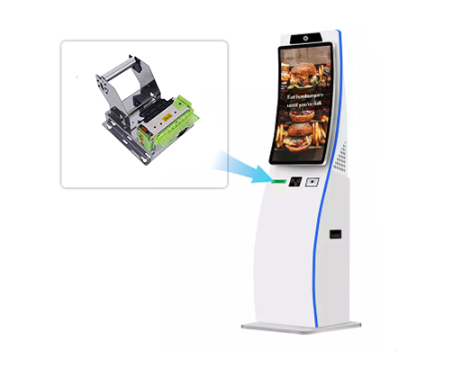

The 58-80mm Thermal Printer is a self-service terminal thermal printer, and it can support a print width of 58-80mm. It is suitable for self-service terminals such as financial self-service terminals, communication self-service terminals, coupon self-service terminals, ticket self-service terminals, queuing machines, etc.
Description
Aperçu:

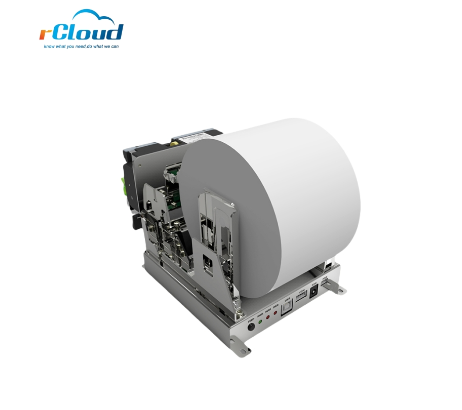

The 58-80mm Thermal Printer is 3 inch kiosk thermal printer which is consist of thermal printer head ,cutter and control board.It supports adjustable paper widths from 58mm to 80mm, making it suitable for various self-service terminal devices such as medical self-service terminals, tax terminals, vending kiosks, fuel dispensers, and queue management systems. It supports multiple interfaces (USB, serial, and network ports) and is compatible with various operating systems, ensuring stability and efficiency. Its compact design allows for easy integration into different terminal devices, making it an ideal choice for reliable commercial printing.
Spécification:
| Printing | Méthode d'impression | Méthode des points de ligne thermique |
|---|---|---|
| Vitesse d'impression | Maximum : 250 mm/s | |
| Résolution | 203 dpi (8 points/mm) | |
| Zone d'impression efficace | 80mm | |
| Character | Jeu de caractères | ASCII,GBK,BIG5 et ainsi de suite |
| Print font | ASCII:(9*17,9*24,16*18,12*24)Chinese:(24*24) | |
| Le nombre de caractères par ligne | Police A(12*24):32Police B(9*17):42 GBK:16 | |
| Paper Roll specification | Type de papier | Rouleau de papier thermique |
| Largeur du papier | 58-82mm | |
| Épaisseur du papier | 55-200μm | |
| Diamètre maximum du rouleau de papier/diamètre intérieur du rouleau de papier | Maximum : 150 mm/Min : 18 mm | |
| Méthode d'alimentation papier | Alimentation automatique (directement) | |
| detection | Détection de la température de la tête | Thermistance |
| Aucune détection de papier | Détection photoélectrique | |
| Détection de fin de papier proche | Détection photoélectrique | |
| Détection de marque noire | Détection photoélectrique | |
| Détection des marques de couture | Détection photoélectrique | |
| fonction de détection de plateau ouvert | Interrupteur mécanique | |
| Débit en bauds | 9600bps-115200bps | |
| Ensemble d'instructions | Jeu d'instructions ESC/POS | |
| Conducteur | Pilote Windows | |
| Interface | USB, RS232, réseau local | |
| Code à barres | Code 1D | UPCA,UPC-E,JAN13(EAN13),JAN8(EAN8),CODE39,ITF,CODABAR,CODE128,CODE93; |
| Code 2D | QR code | |
| Fiabilité | Durée de vie de l'impression | 100Km |
| Durée de vie du coupeur | >1000000cuts(When cutting paper with thickness greater than 0.1mm, 500000cuts) | |
| Coupeur | Coupeur automatique | Support full cutter and half cutter simultaneously |
Caractéristiques:
- Small size, easy to integrate into the terminal equipment
- Support for 80mm and 58mm wide printing paper
- Support for real-time control of print quality
- Support for automatic paper feed mode
- Voltage range: 24V ± 10%
- Two USB / RS232 communication modes are supported
- Support for GDI printing mode
- With the black mark positioning function, to ensure the consistency of the bill length
- With the paper will do the detection function, advance warning of paper surplus
- Support the paper port flash light status prompt

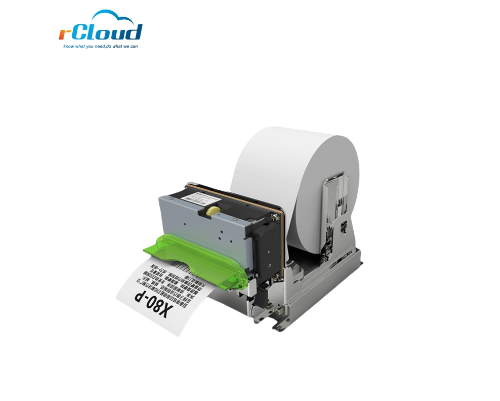

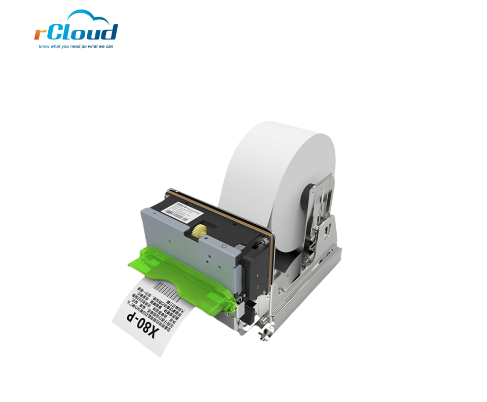

RCT-X80-A printer is a miniaturized 80mm thermal printer. With high speed, high quality, low noise and other sticking points, the paper roll is easy to install the mechanism design, make the user to operate more convenient and fast. The maximum print width can reach 80mm, thus enabling full-format printing. At the same time,RCT-X80-A with special paper shaft and paper retaining mechanism can meet the use of 58mm paper width, truly realize the multi-purpose function, can be widely used in various fields of terminal equipment.
