Pcsc/Ccid Card Reader with Standard Type A USB

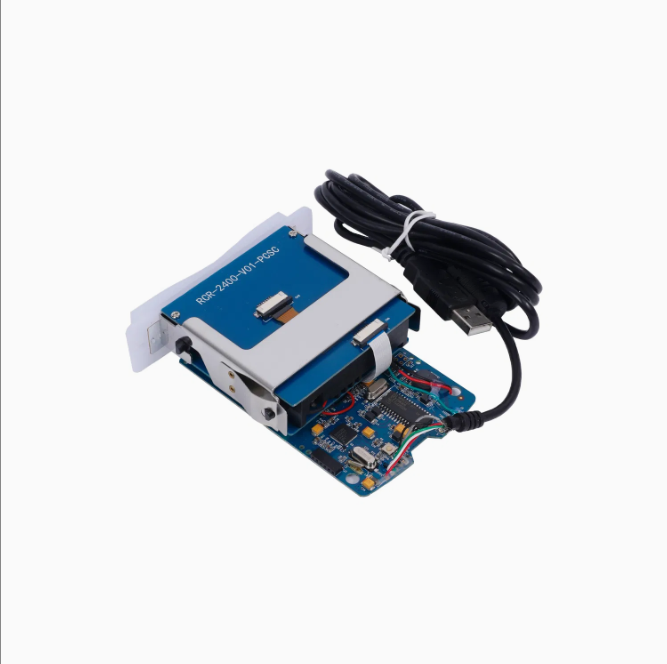

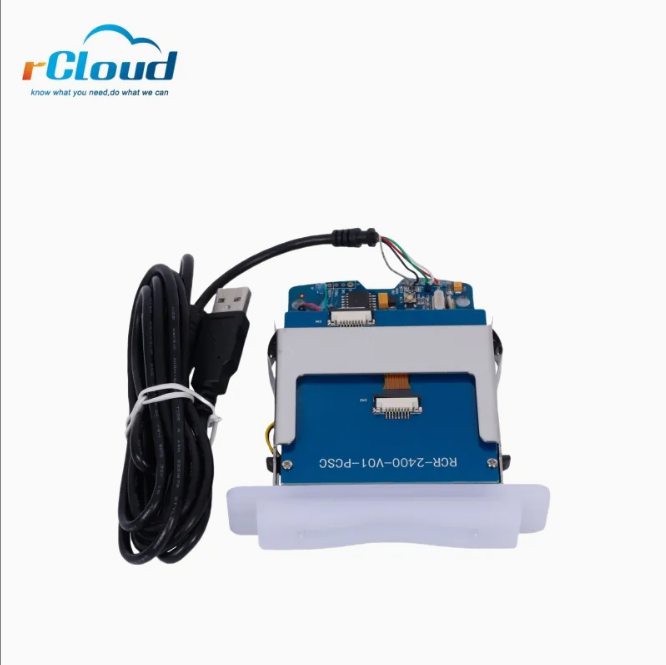

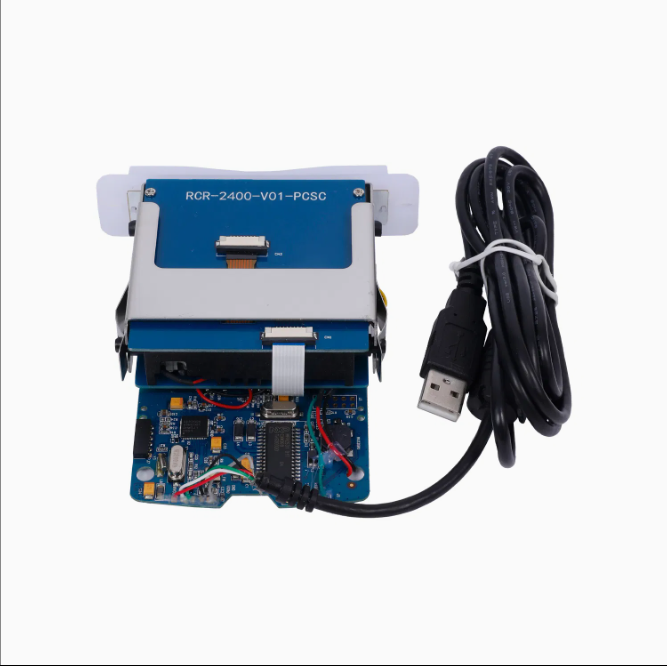

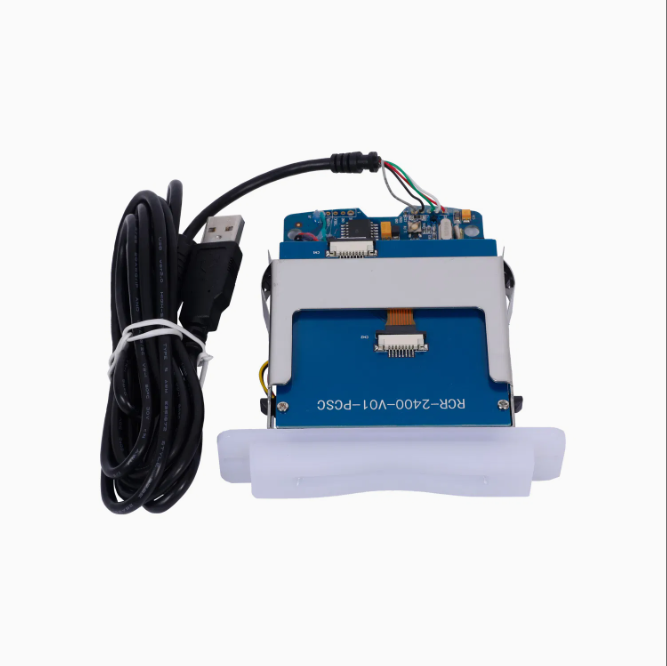

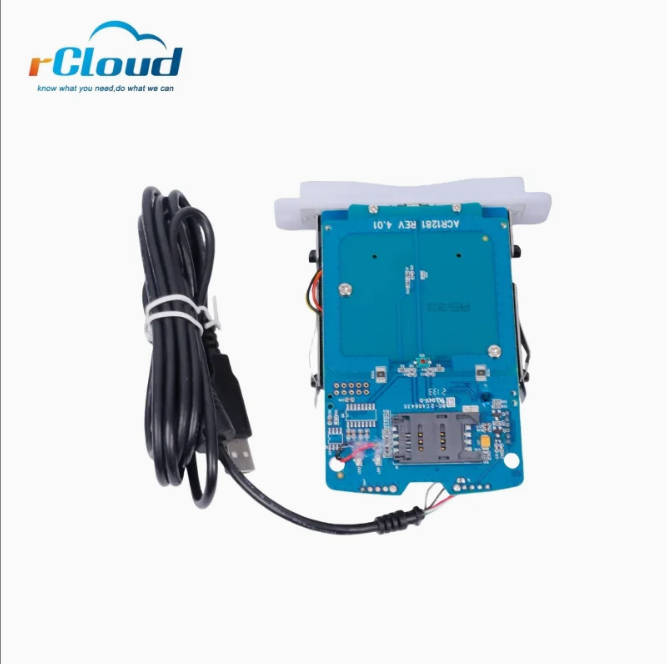

PCSC/CCID Standard Type A USB Smart Card Reader
Compatible with Multiple Systems, Plug-and-Play, Stable and Reliable
Descripción

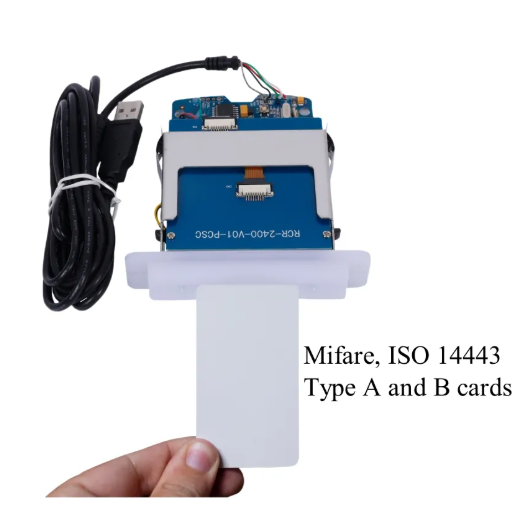

This PCSC/CCID Standard Type A USB card reader strictly adheres to the PCSC (Personal Computer Smart Card) specification and CCID (Chip Card Interface Device) protocol. It is widely compatible with various contact – type smart cards (such as IC cards, CPU cards, identification cards, financial IC cards, etc.), and is an ideal choice for scenarios such as government affairs, finance, enterprises, and healthcare.
Especificación:
| Protocolo | CCID USB |
|---|---|
| Tipo de conector | USB tipo A estándar |
| Supply Voltage | 5 V |
| Velocidad | USB de máxima velocidad (12 Mbps) |
| Estándar | ISO 7816 Partes 1-3, Clase A, B, C (5 V, 3 V, 1,8 V) |
| Protocolo | T=0; T=1; Soporte de tarjeta de memoria |
| Corriente de suministro | Máx. 50 mA. |
| Velocidad de lectura/escritura de tarjeta inteligente | 9,6 Kbps – 480 Kbps |
| Protección contra cortocircuitos | (+5) V/GND en todos los pines |
| Frecuencia del reloj | 4MHz |
| Ciclos de inserción de tarjetas | Mín. 100.000 |
| Modo vinculado a PC | PC/SC |
| Descarga en línea | Apoyo la descarga en línea del ISP. |
| Peso neto | Aprox.: 0,3 Kg (sin accesorios) |
| Estándar RoHS | Cumplir con el estándar ROHS. |
| Temperatura | 0 °C – 60 °C |
| Humedad | Máx. 90% (sin condensación) |
Application:
Government and Public Services: Supports the expansion of ID card readers, social security/medical insurance information querying, housing provident fund service handling, etc.
Finance and Payment Fields: Compatible with bank USB keys and financial IC cards, used for online banking transfers and POS terminal identity verification, compliant with the PCI DSS security standard.
Enterprise and Office Scenarios: Enables employees to log in to computers with employee cards, access encrypted files, and authenticate for VPN networks. It also supports system – level identity verification.
Medical and Education: Adapted for medical insurance card settlement during medical treatment, campus card identity verification, library borrowing card information reading, etc.

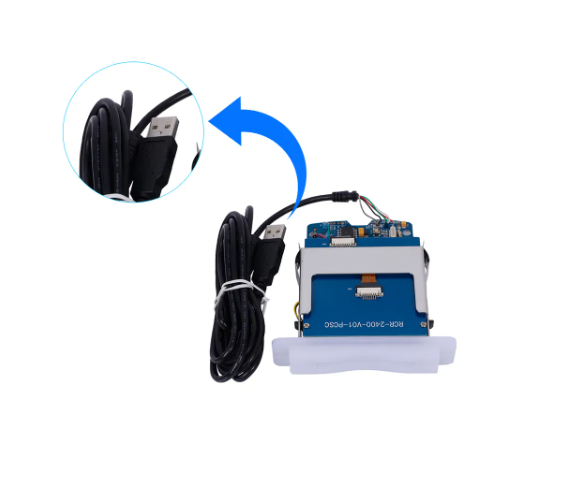

Standard Type A USB interface: It adopts gold-plated contacts to reduce the risk of oxidation. The number of insertions and extractions is ≥10,000 times to ensure stable long-term contact.
In addition to the standard Type A USB, a USB-C interface version can be added.
